4K-12G sdi coaxial cable 24 inches 90 degree connectors 01_SHAPE_4K-12G_SDI_Coaxial_Cable_24_inches

4K-12G sdi coaxial cable 24 inches 90 degree connectors

€113,40
Skip to product information
4K-12G sdi coaxial cable 24 inches 90 degree connectors 01_SHAPE_4K-12G_SDI_Coaxial_Cable_24_inches

Shape

4K-12G sdi coaxial cable 24 inches 90 degree connectors

Ref. 12G24

€113,40 incl. VAT

€94,50 excl. VAT

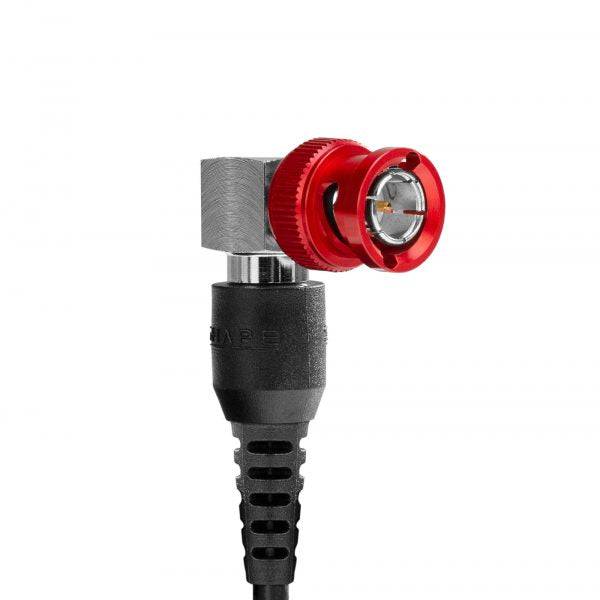

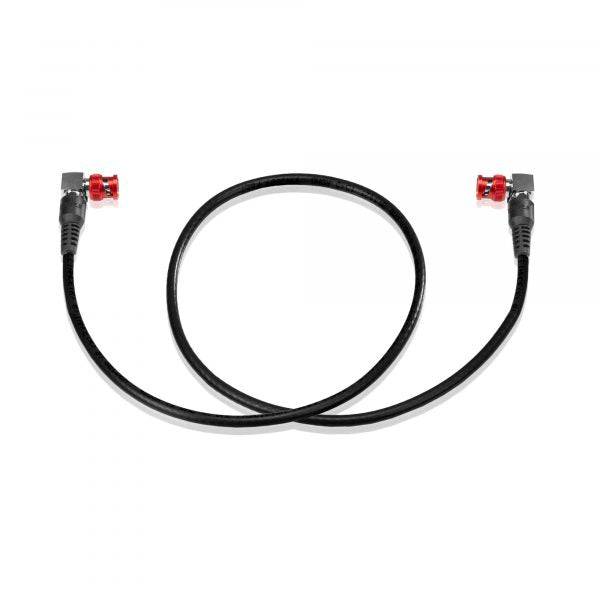

• High-quality 90-degree Male BNC to 90-degree Male BNC shielded cable.
• Designed to record and transfer video signals including 12G 4K ProRes raw.
• Cable length is 24 inches (60.96 cm) with a thin gauge outer diameter of 0.159 inches (4 mm).
• Impedance of 75 ohms and frequency range from DC to 12 GHz.

Restocking in progress
Payment methods
  • American Express
  • Apple Pay
  • Bancontact
  • Cartes Bancaires
  • EPS
  • Klarna
  • Mastercard
  • MB WAY
  • MobilePay
  • PayPal
  • Shop Pay
  • Visa

Product details

Everything you need to know

  1. Design and Construction

    Design and Construction

    The cable features a 4 mm diameter and 90-degree female-to-female BNC connectors, ensuring compatibility with various professional video equipment.

  2. Performance and Compatibility

    Performance and Compatibility

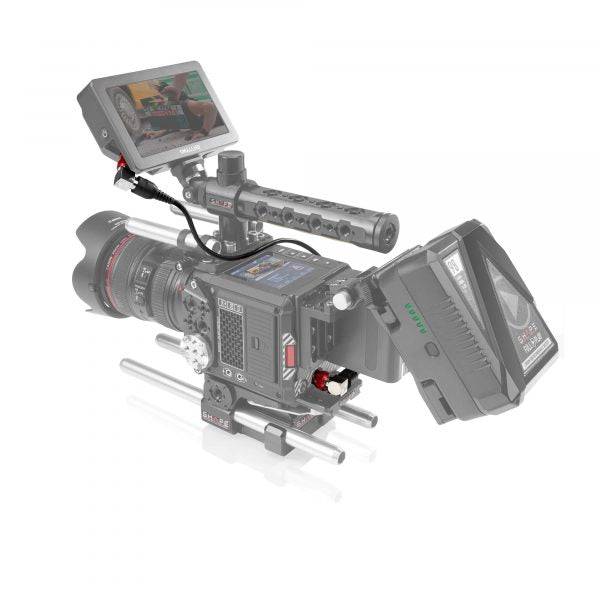

    It supports 12G-SDI/4K video applications with extended bandwidth for high-quality signal transmission, suitable for HD cameras, gimbals, monitors, EVFs, antennas, and SDI Wireless TX/RX sets.

Specifications

Length
24 in (60.96 cm)
Outer Diameter
0.159 in (4 mm)
Impedance
75 ohms
Frequency Range
DC to 12 GHz
VSWR
1.5 MAX
Connector Type
90 : degree Male BNC to 90 : degree Male BNC

In the box

  • 1× 4K-12G SDI Coaxial Cable 24 inches
