Dual V-Mount Hot Swap Mini Battery Plate

€148,20
Skip to product information
Dual V-Mount Hot Swap Mini Battery Plate 01_SHAPE_Dual_V-Mount_Hot_Swap_Mini_Battery_Plate

Shape

Dual V-Mount Hot Swap Mini Battery Plate

Ref. DVHMP

€148,20 incl. VAT

€123,50 excl. VAT

• Supports two Mini V-mount batteries simultaneously on the plate.
• Attaches via regular V-mount connection at the back.
• Provides hot swap support with independent LED indicators for each battery.
• Includes two D-tap ports, one on each side, at 14.8V.

Restocking in progress
Payment methods
  • American Express
  • Apple Pay
  • Bancontact
  • Cartes Bancaires
  • EPS
  • Klarna
  • Mastercard
  • MB WAY
  • MobilePay
  • PayPal
  • Shop Pay
  • Visa

Product details

Everything you need to know

  1. Dual Battery Support and Connectivity

    Dual Battery Support and Connectivity

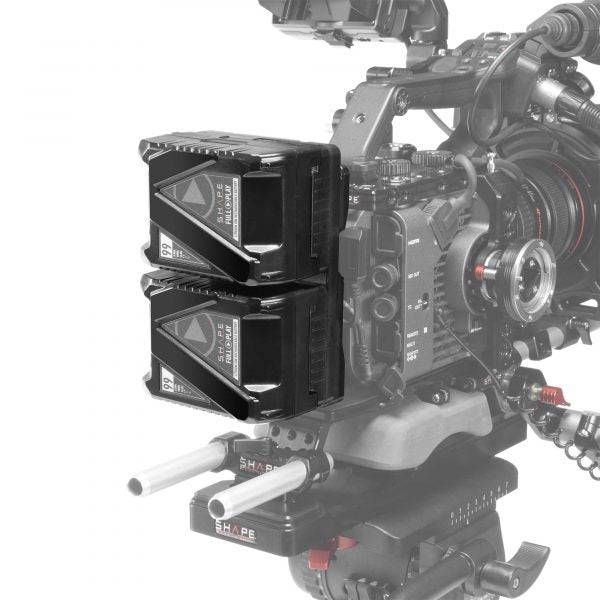

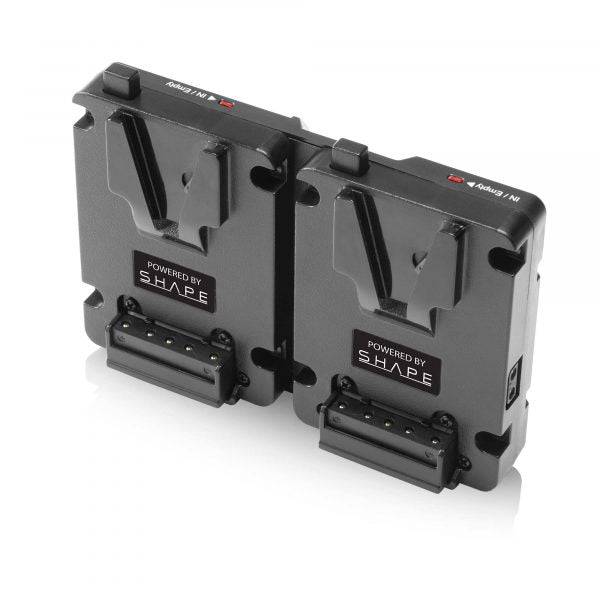

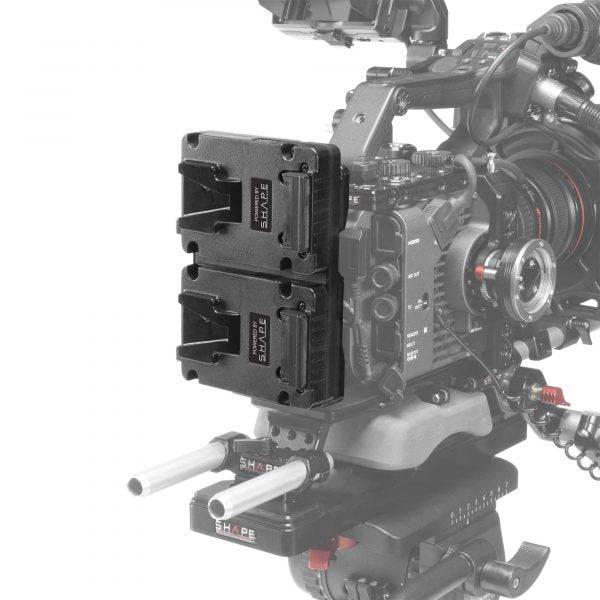

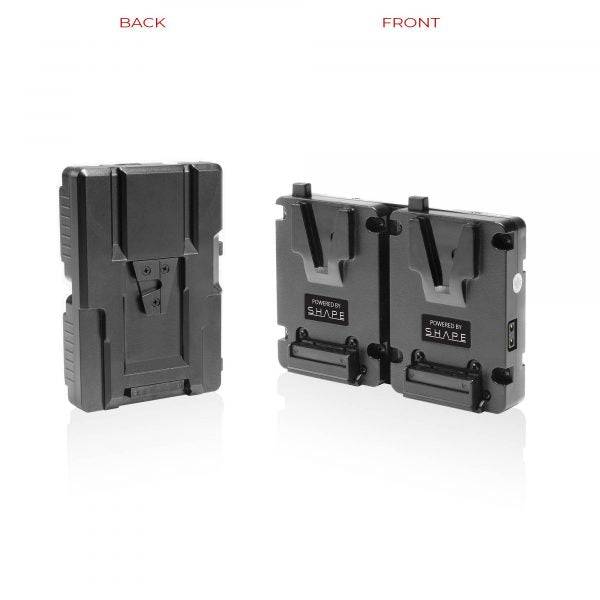

    The SHAPE Dual V-mount Battery Plate can hold two Mini V-mount batteries concurrently and connects through a standard V-mount at the back. It is designed as a parallel power plate to increase current availability for higher-power devices.

  2. Discharge Behavior and Current Output

    Discharge Behavior and Current Output

    When batteries with different voltages are connected, the higher-voltage battery discharges first until it matches the lower one, after which both batteries discharge together. If both batteries have the same voltage, they discharge simultaneously to deliver a combined current output up to a maximum of 20A.

  3. Indicators and Hot Swap Capability

    Indicators and Hot Swap Capability

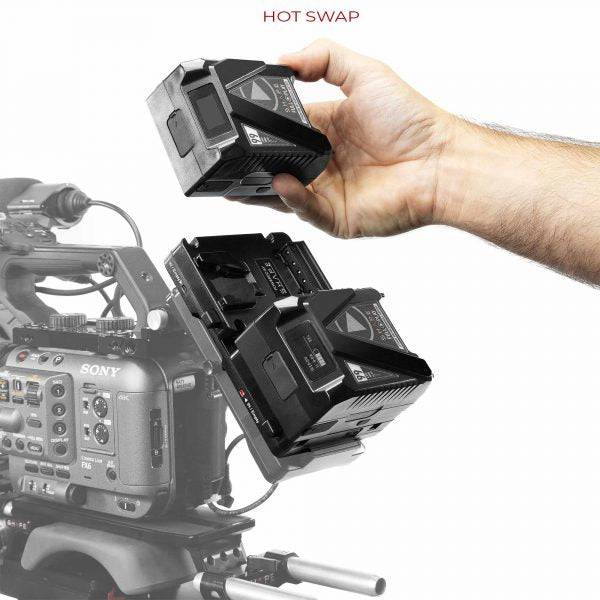

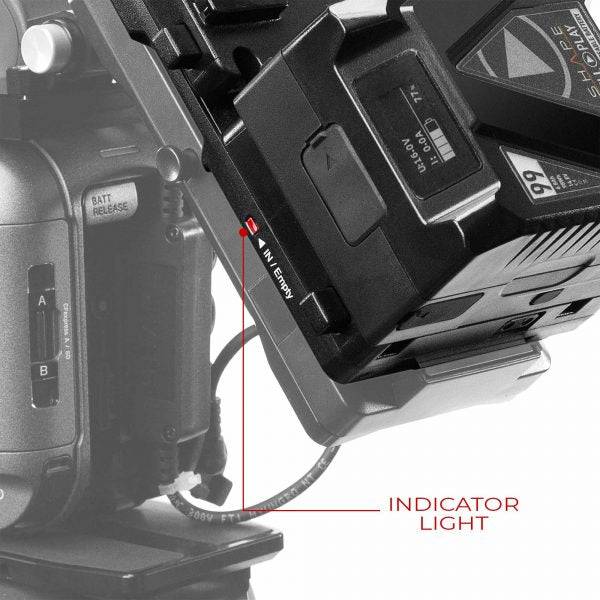

    The battery plate features independent LED indicators positioned above each battery to display status. This setup supports hot swapping batteries without power interruption.

Specifications

Compatibility
Two Mini V : mount batteries
Dimensions
4.00 × 1.50 × 6.00 in
Dimensions
10.16 × 3.81 × 15.24 cm
Maximum Current Output
20A
Voltage
14.8V

In the box

  • 1× Dual V-Mount Hot Swap Mini Battery Plate
