Charger Features

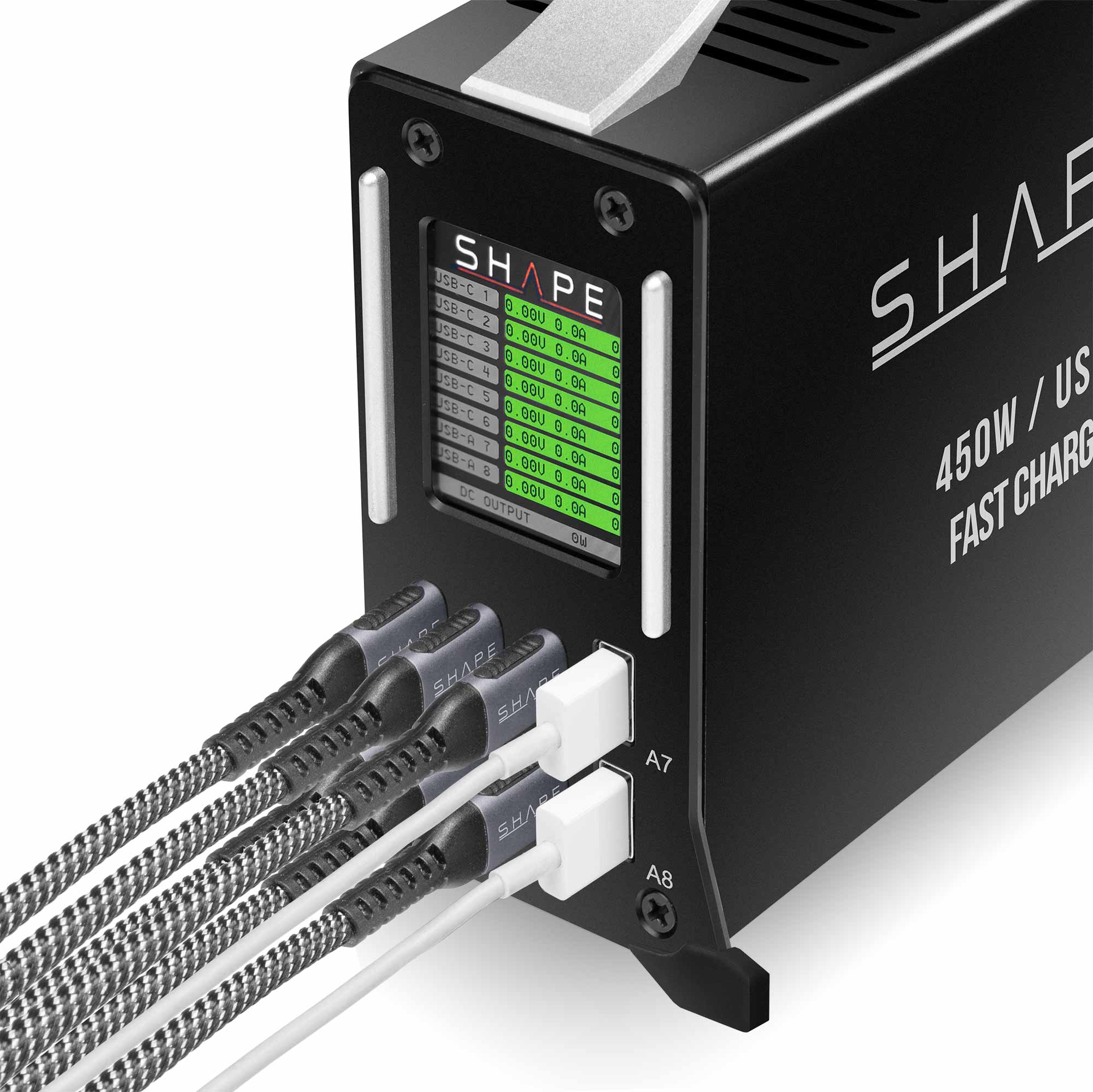

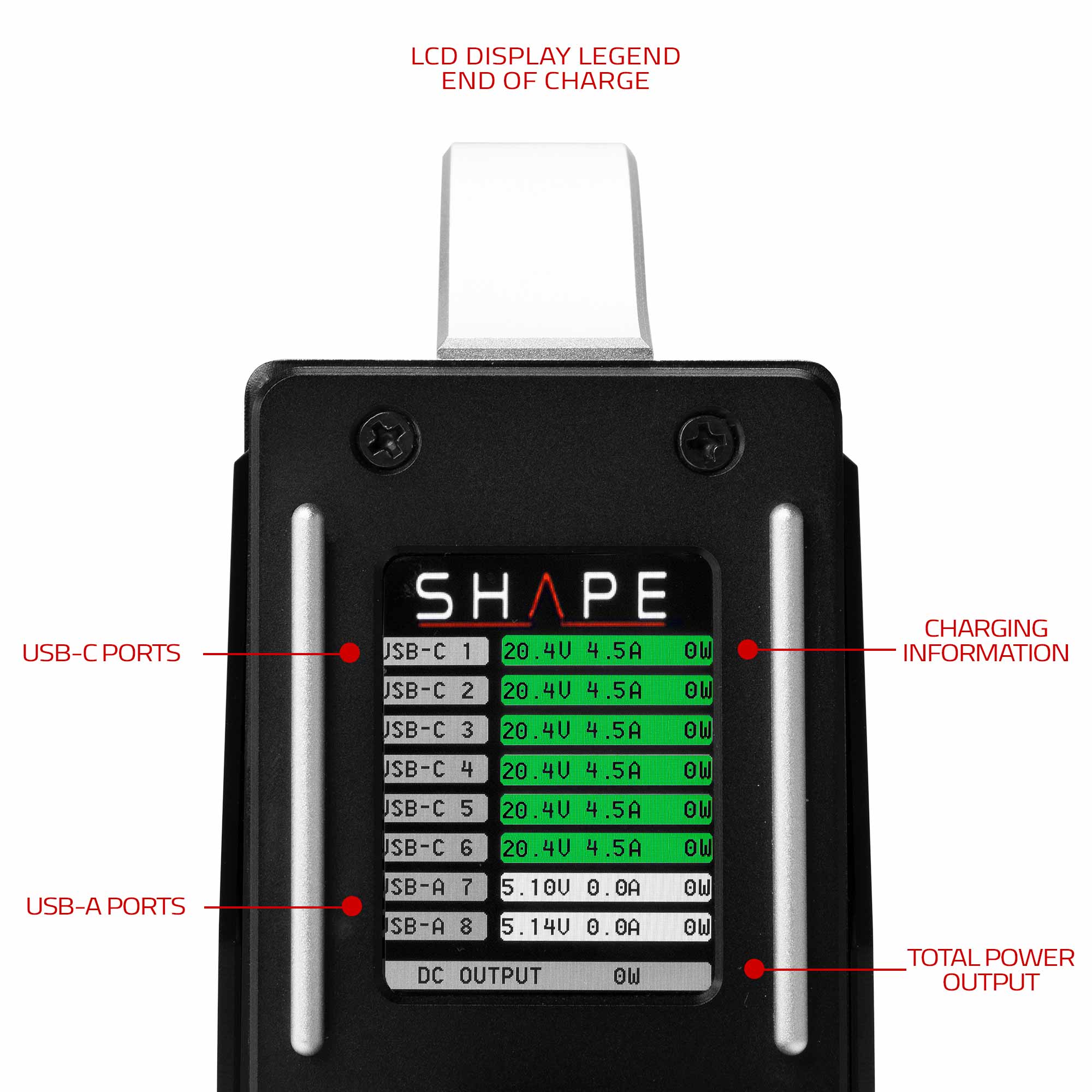

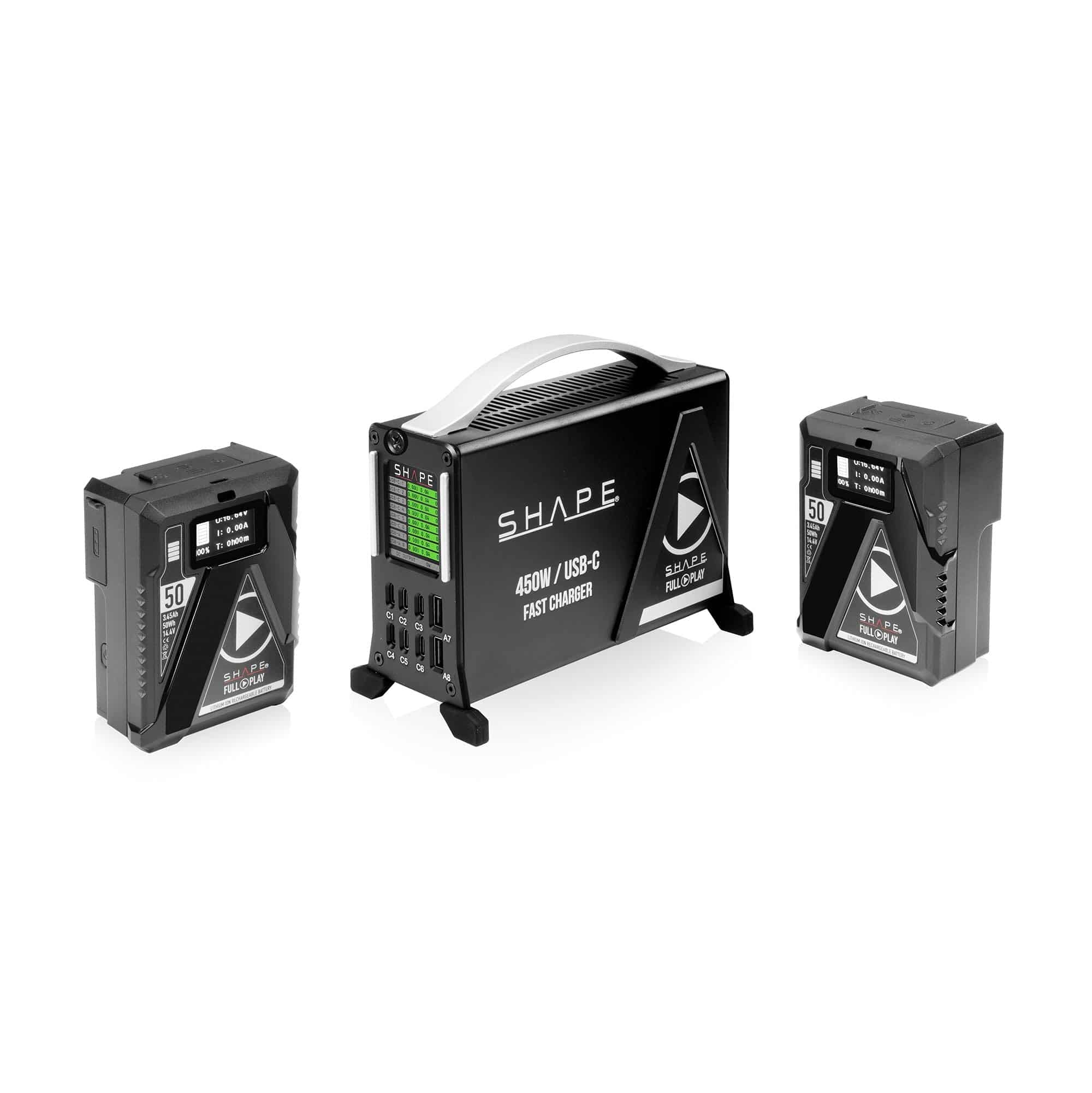

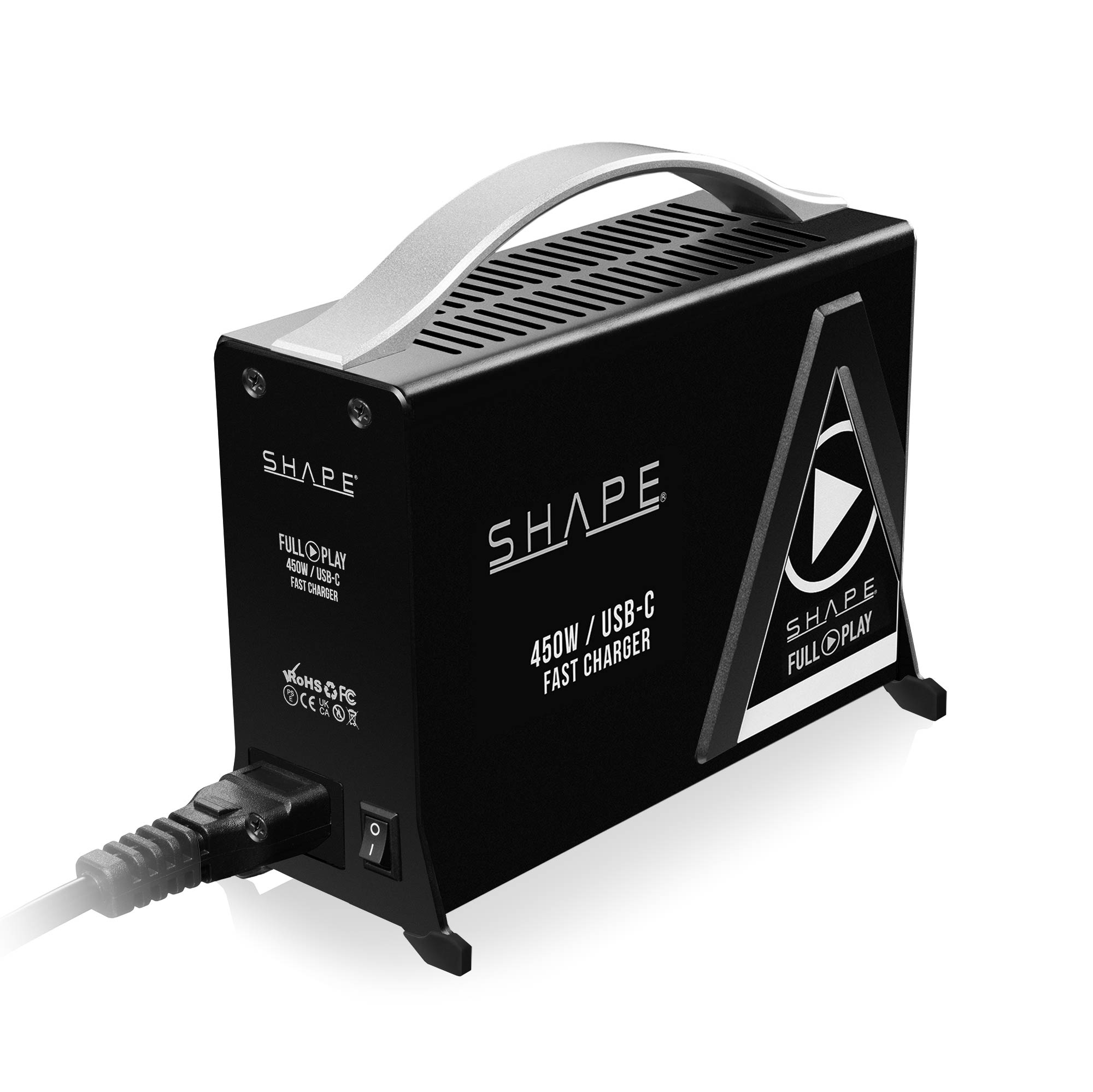

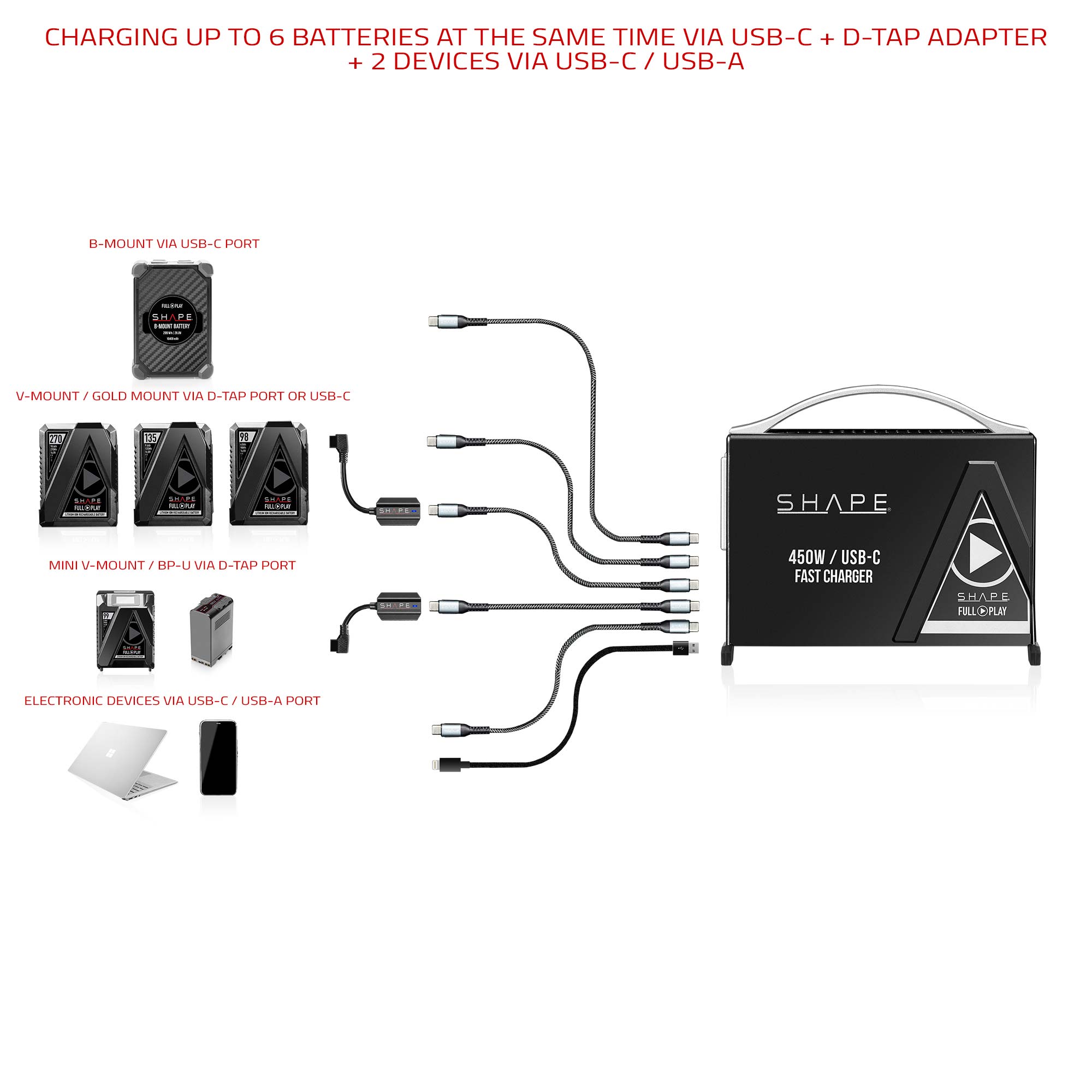

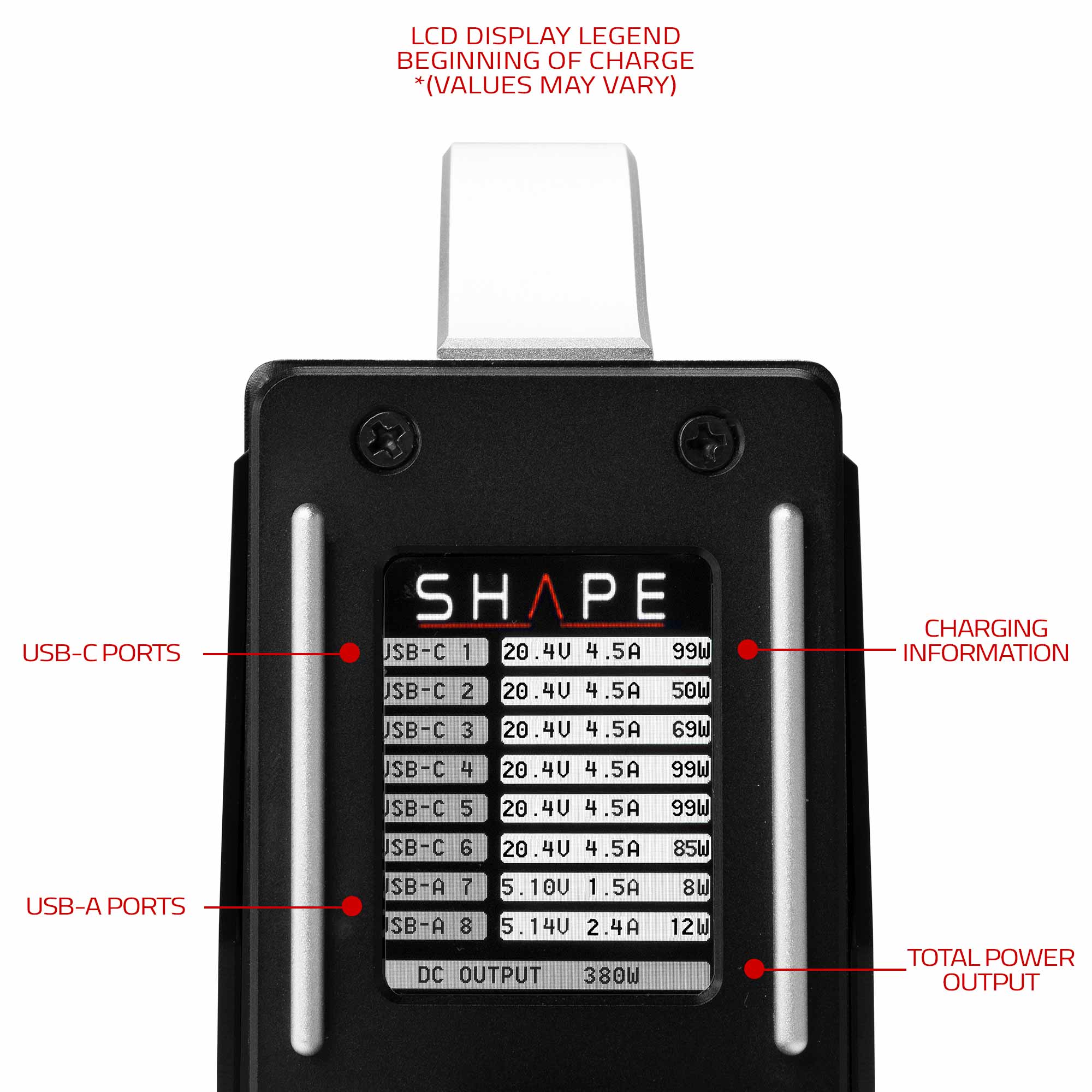

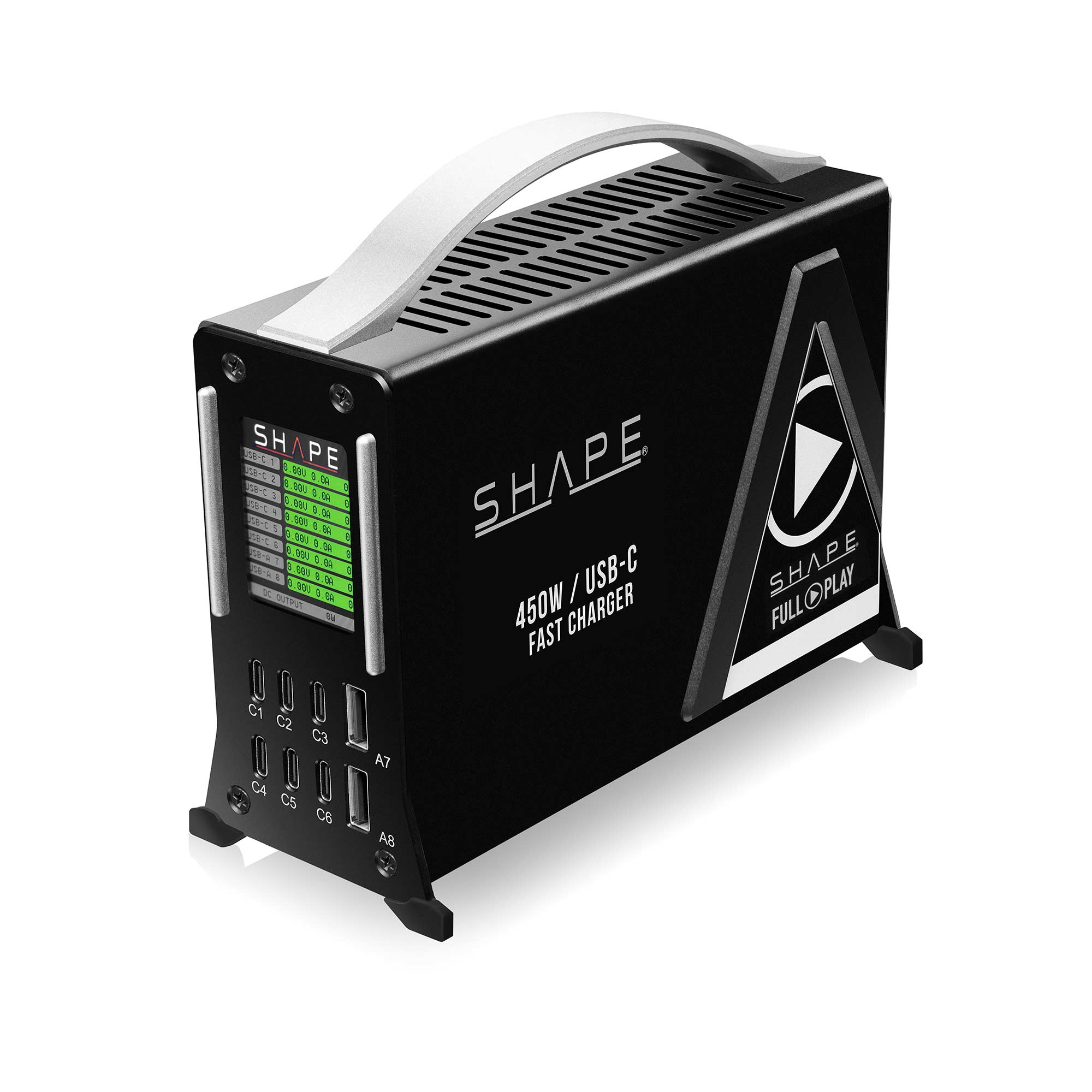

The SHAPE 450W USB-C Fast Charger supports charging up to 6 Gold Mount, V-Mount, or B-Mount batteries simultaneously, providing 6 USB-C ports each supporting up to 100W PD charging input, plus 2 USB-A ports at 18W each. It includes an LCD display for monitoring charging progress and is constructed from durable aluminum alloy with a lightweight design and integrated handle for portability.
Battery Specifications

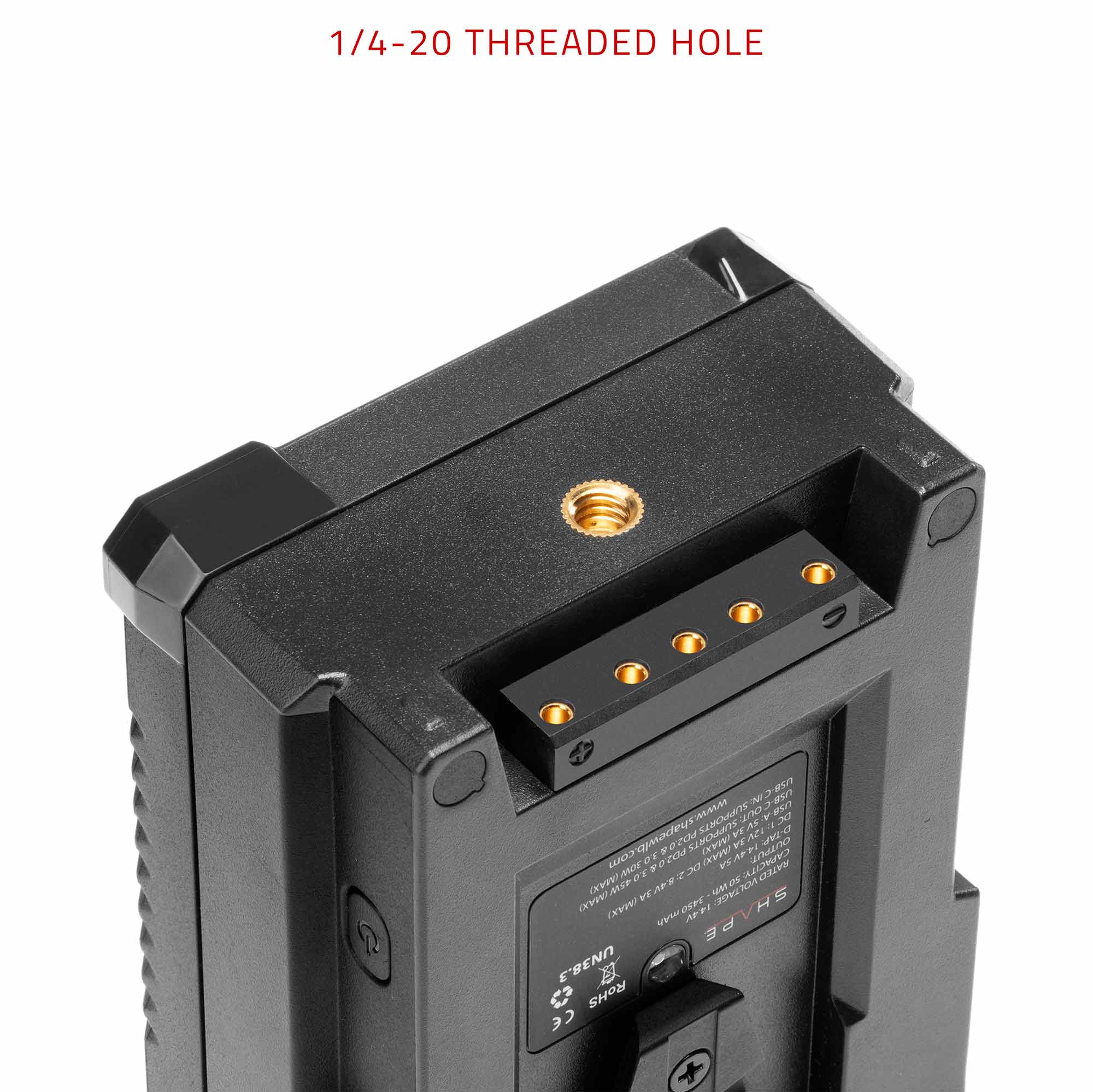

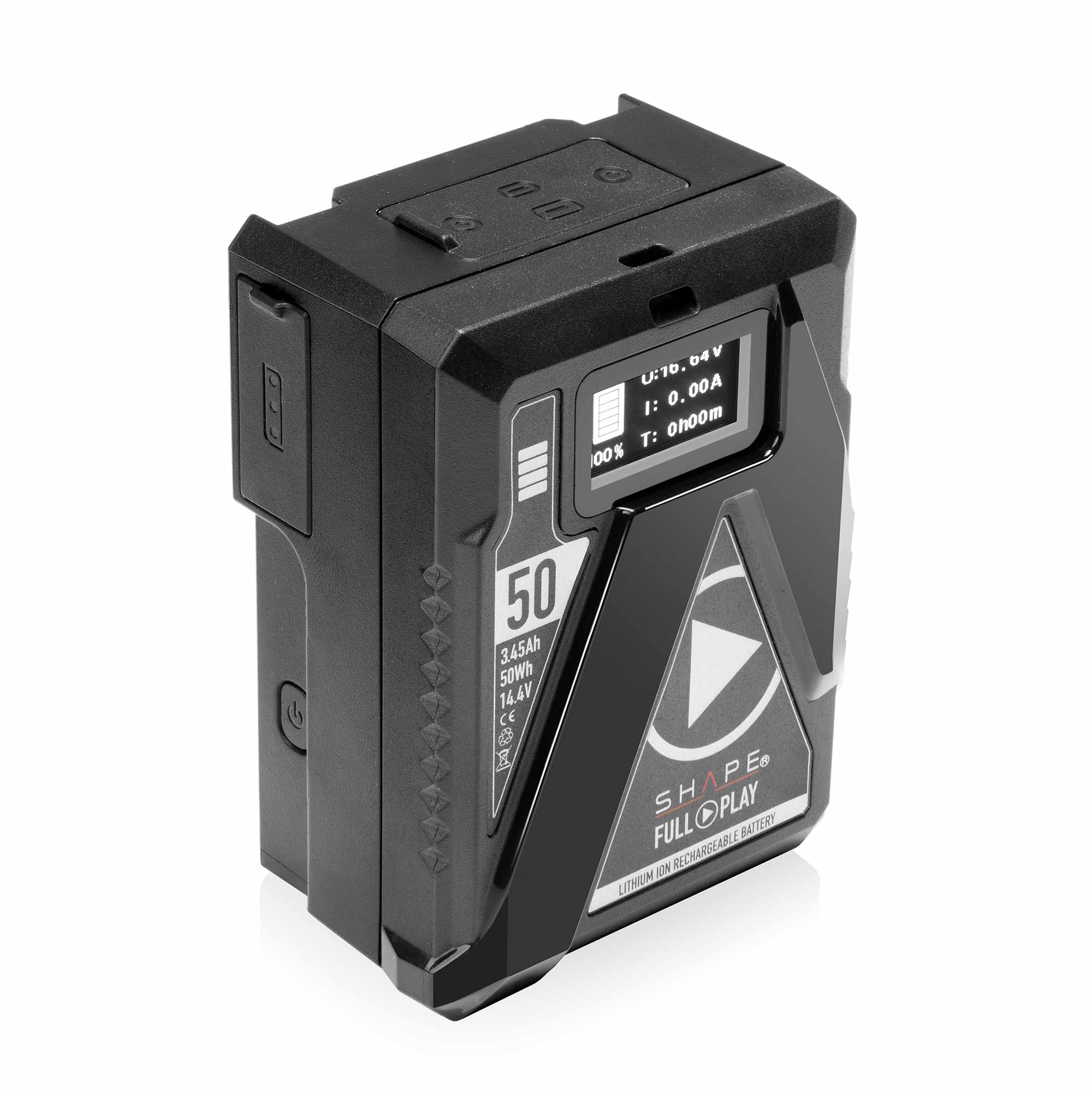

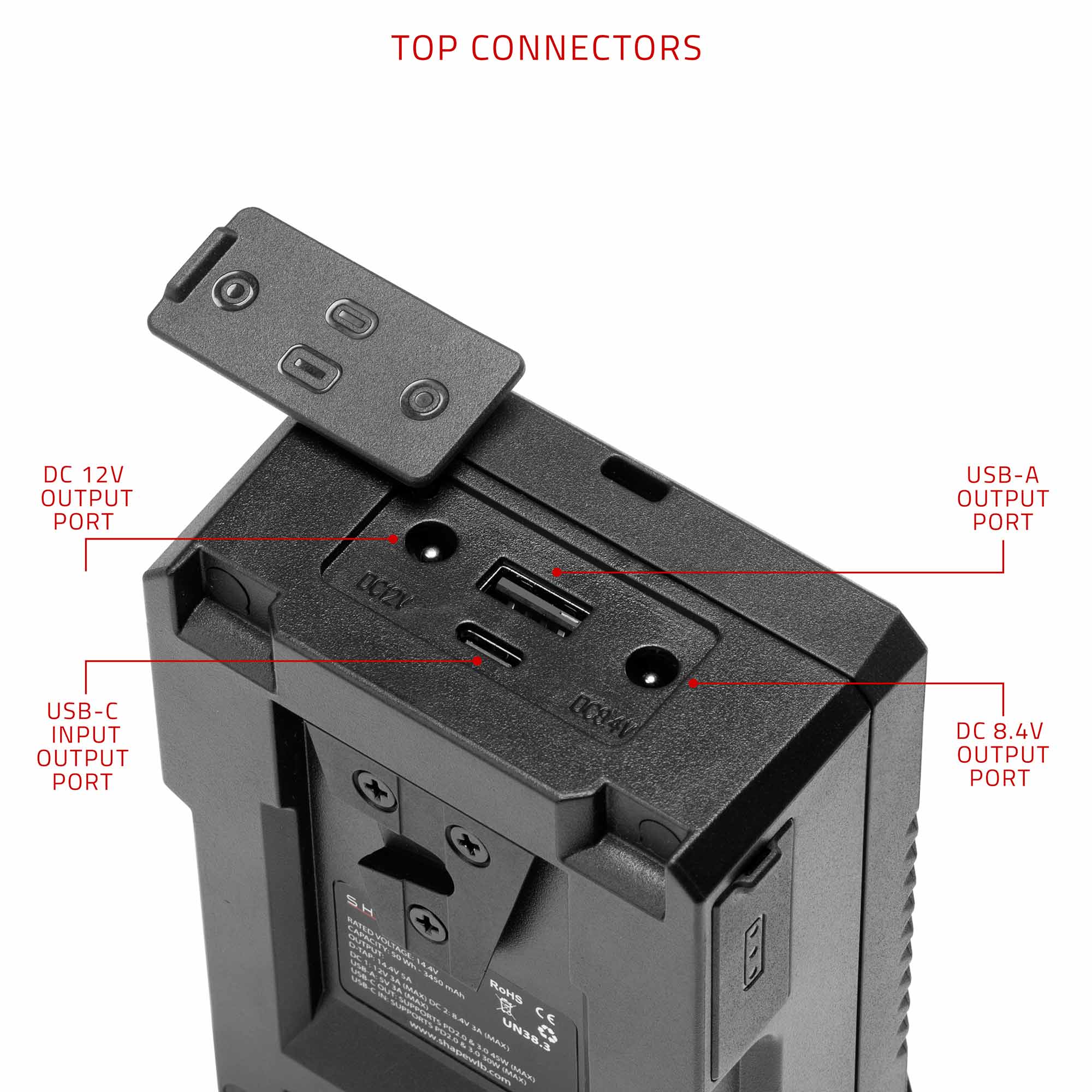

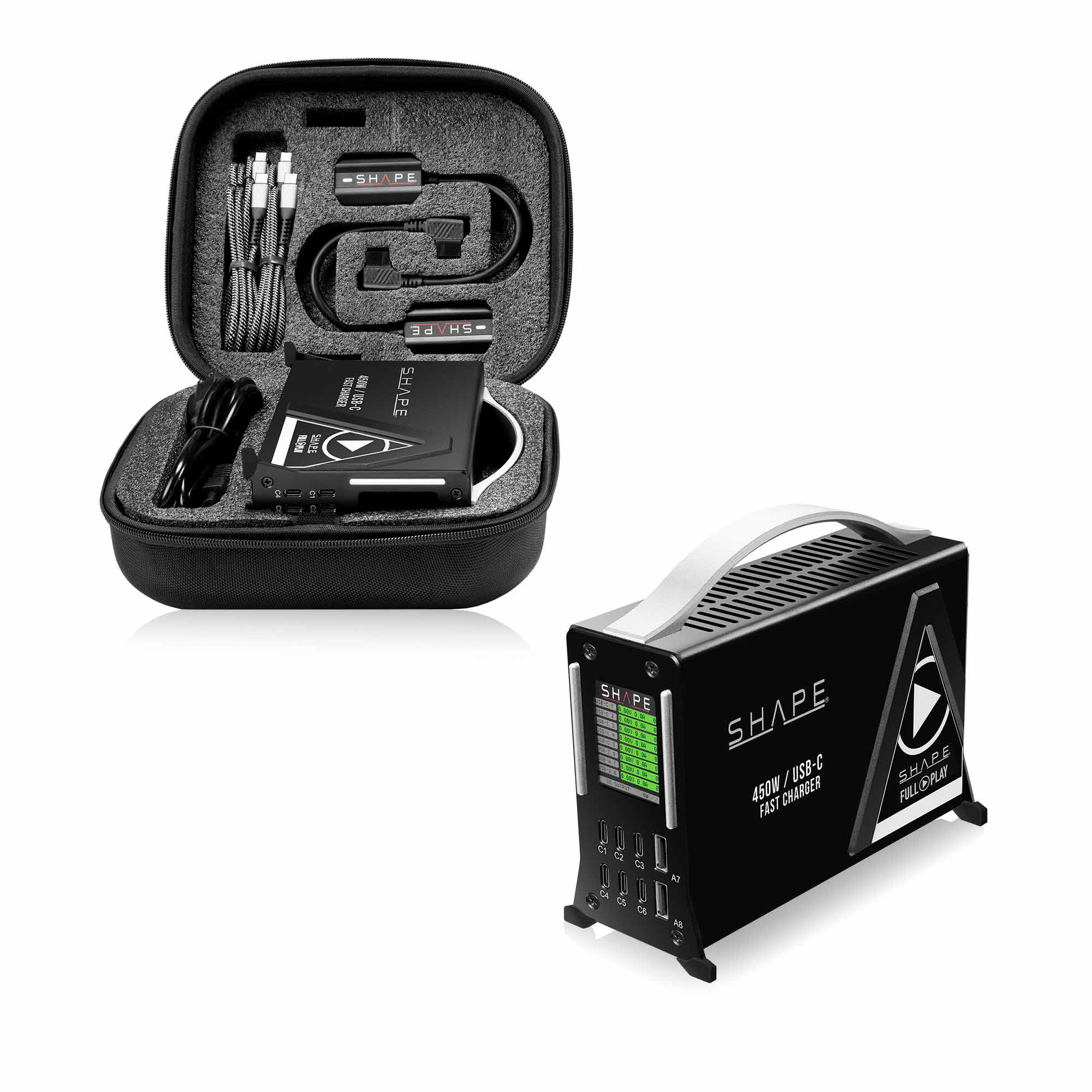

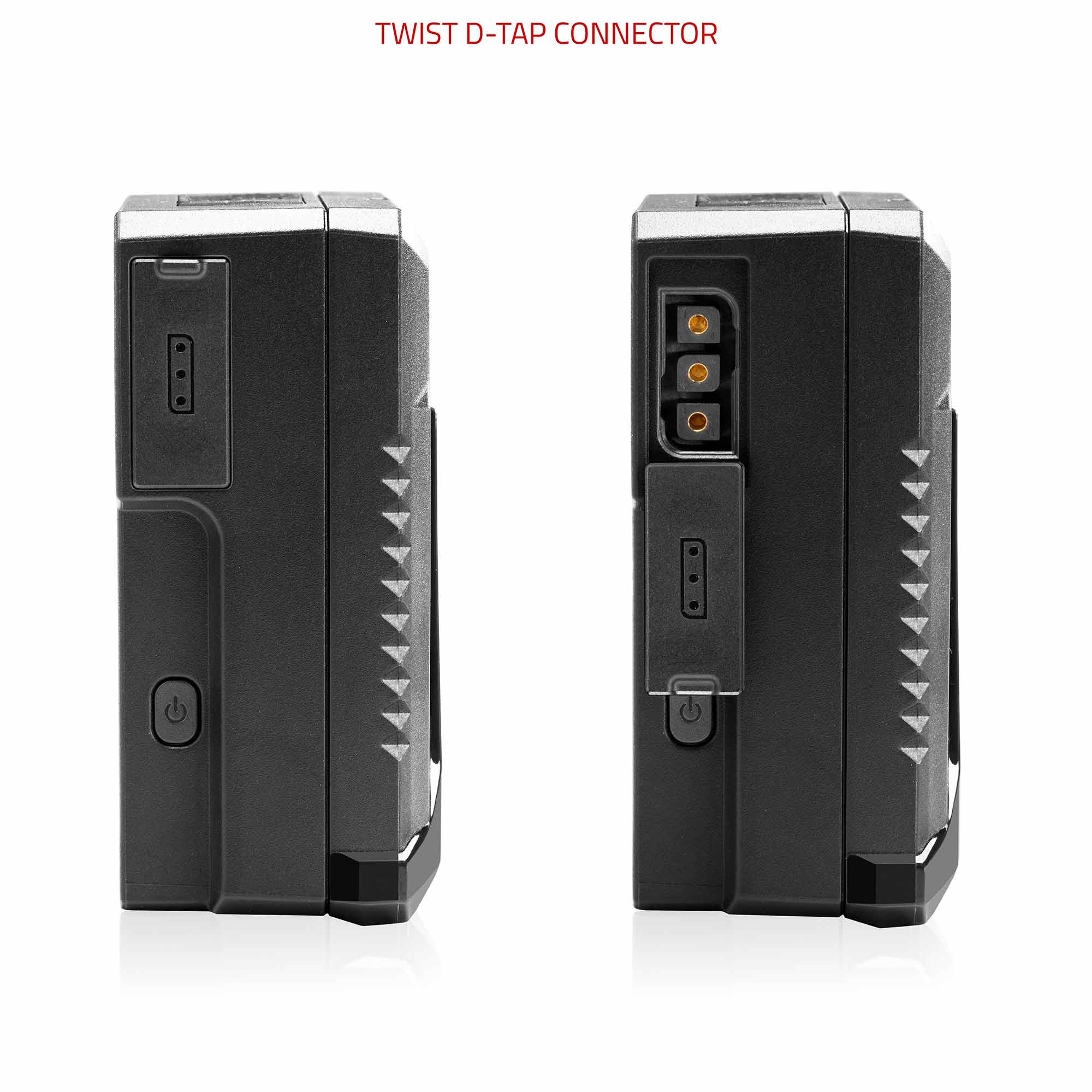

The kit includes two 50Wh Mini V-Mount batteries featuring a compact form factor compatible with various professional video equipment. Each battery provides 14.4V output at 5A continuous draw, a capacity of 3450 mAh, and incorporates a twist D-tap port to prevent reverse polarity connection, as well as built-in short-circuit, over-voltage, and over-current protections. They feature LCD displays indicating voltage, amperage, time, percentage, and battery level and include a 1/4-20 threaded hole for mounting.
Compatibility and Usage
The batteries and charger are compatible with all broadcast video cameras using standard Gold-Mount or V-Mount battery plates, supporting standard and high-definition broadcast cameras, 4K cinema, 3D setups, DSLRs, and handheld camcorders. Charging is possible via any standard Gold-Mount or V-Mount charger or D-Tap charger except Anton Bauer chargers. The batteries can power various on-rig accessories through the twist D-tap port.
Power : 450W
USB : C ports : 6 (up to 100W PD each)
USB : A ports : 2 (18W each)
Battery capacity : 50 Wh
Battery voltage : 14.4 V
Battery continuous draw : 5 A
Battery capacity (mAh) : 3450 mAh
Dimensions (charger) : 6.50 × 3.00 × 6.00 in
Warranty : 2 : year limited
