Charging Capability

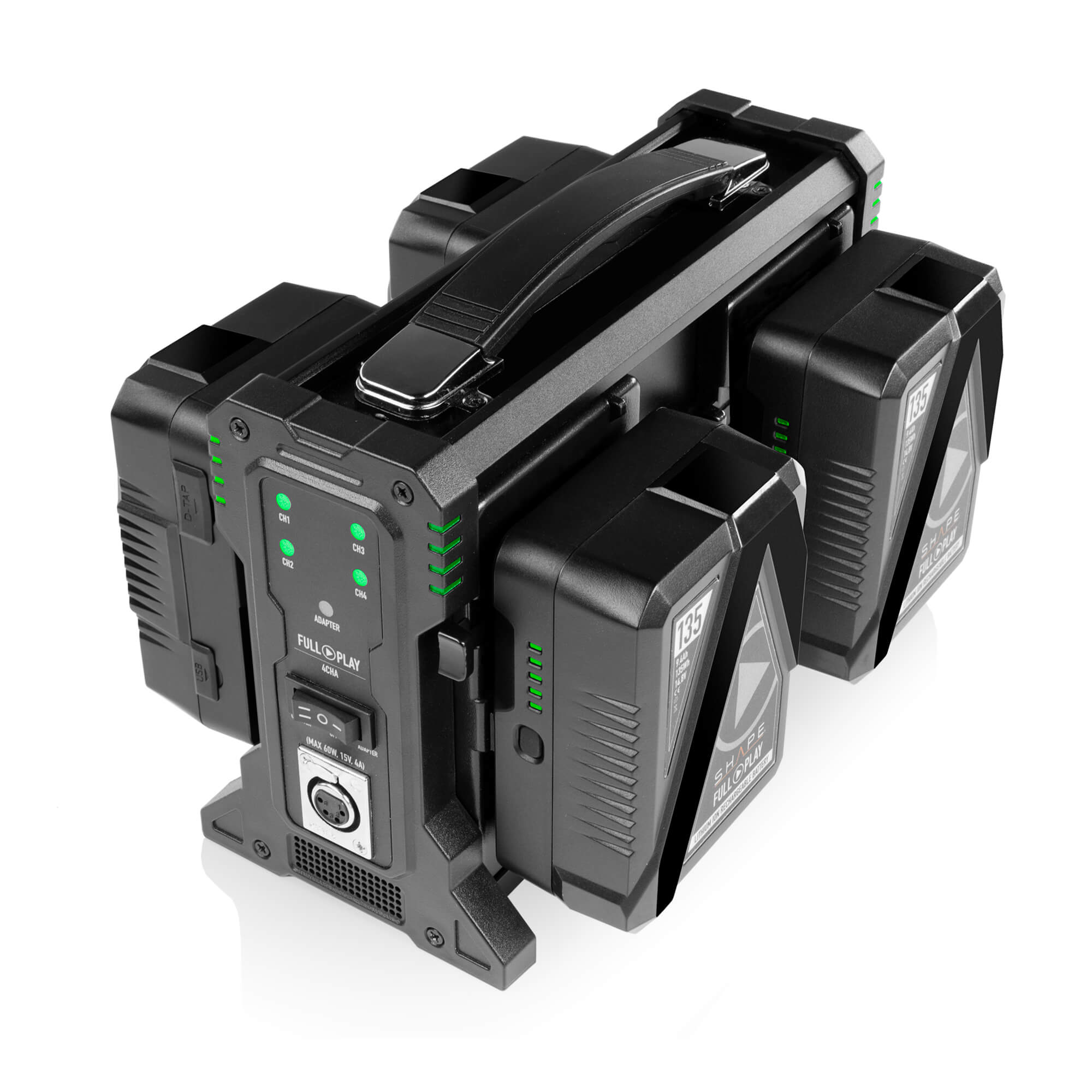

The SHAPE Full Play Intelligent 4-Bay V-Mount Battery Charger can charge up to four Gold Mount or V-Mount batteries at the same time, providing 2.5A charge current per channel to replenish a 95Wh battery in approximately three hours.
Power Output and Connectivity

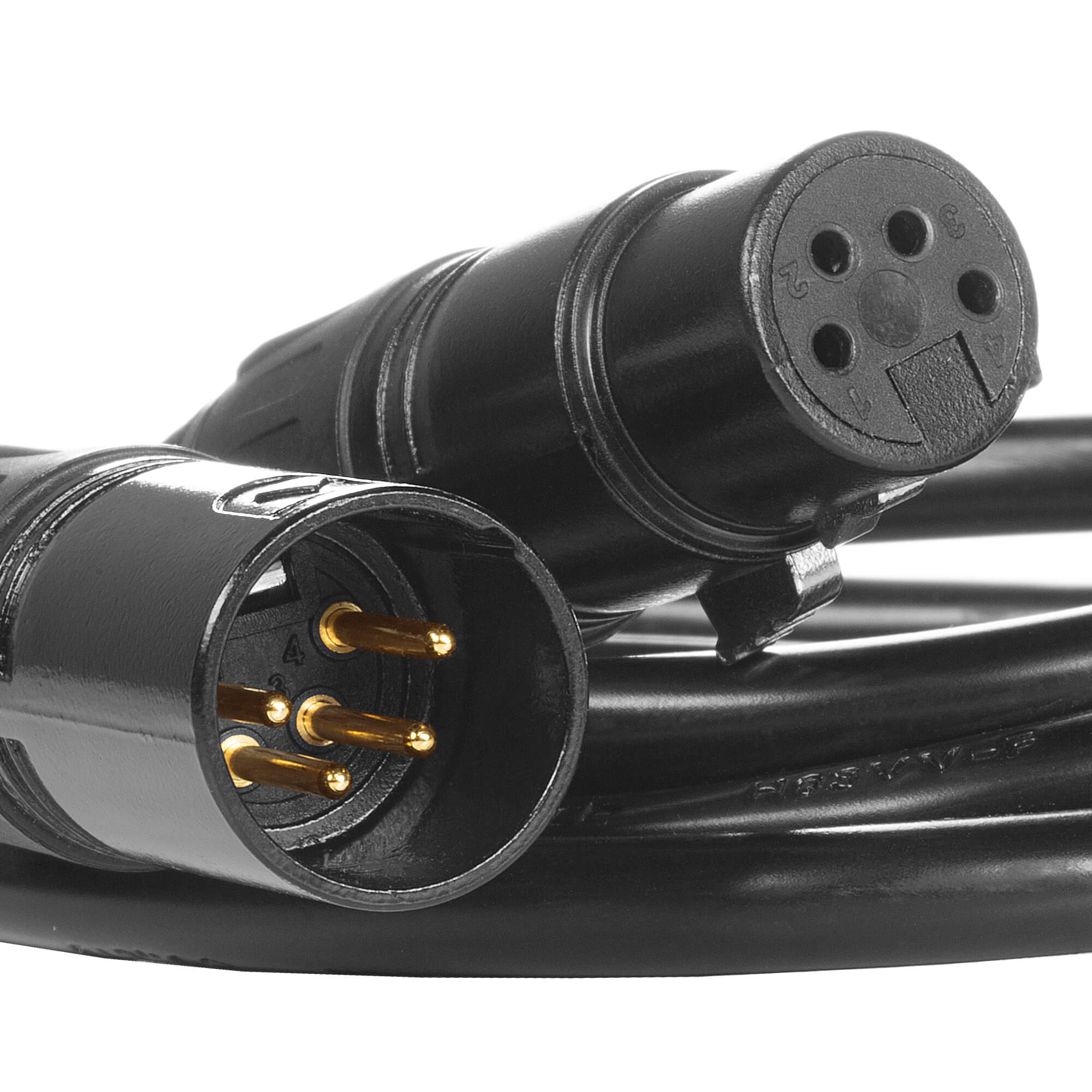

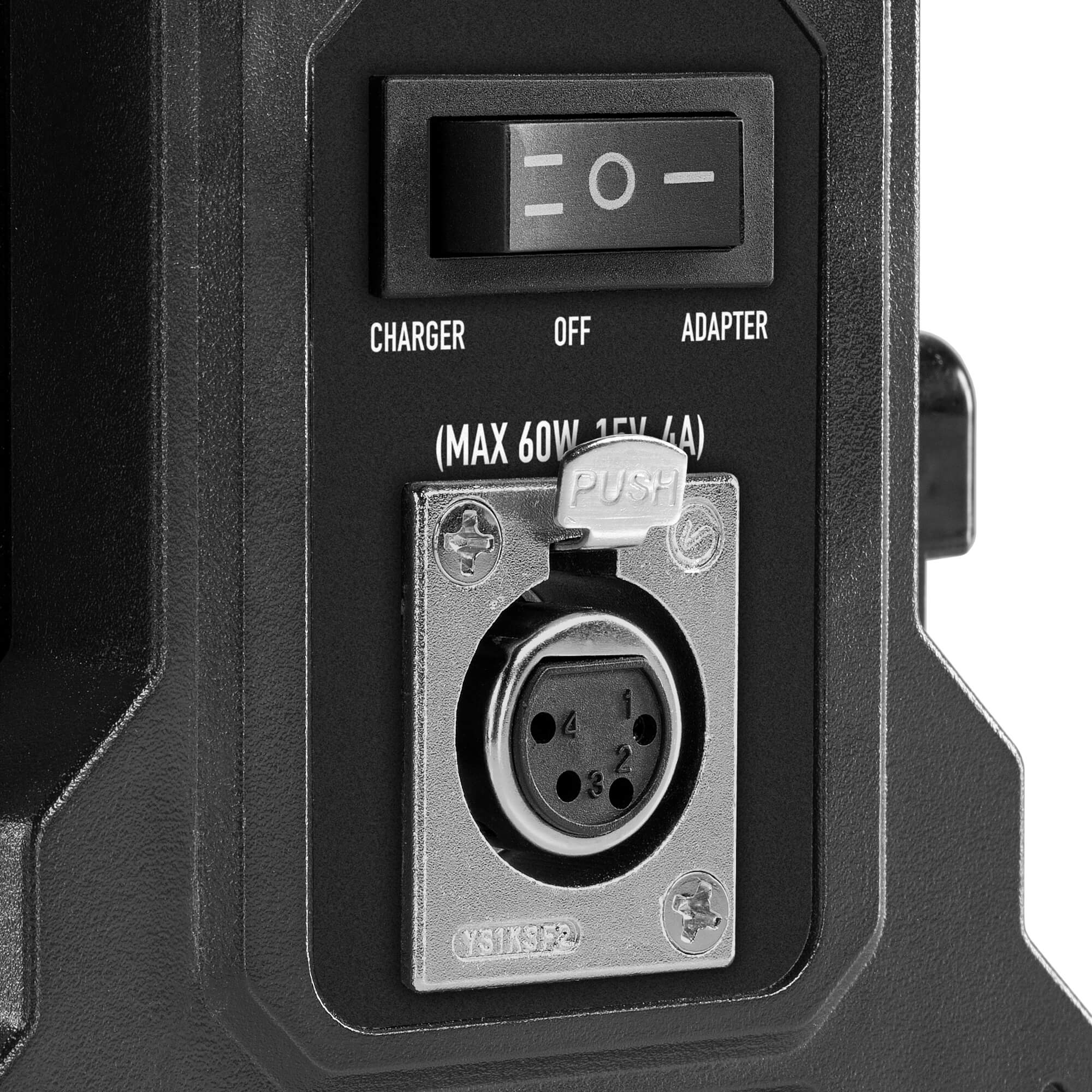

The charger features a 4-pin XLR output capable of supplying up to 60 watts at 15 volts with 4.0A current, allowing it to be used as a DC power supply for cameras or lights through the included male-female 4-pin XLR cable.
Design and Operation

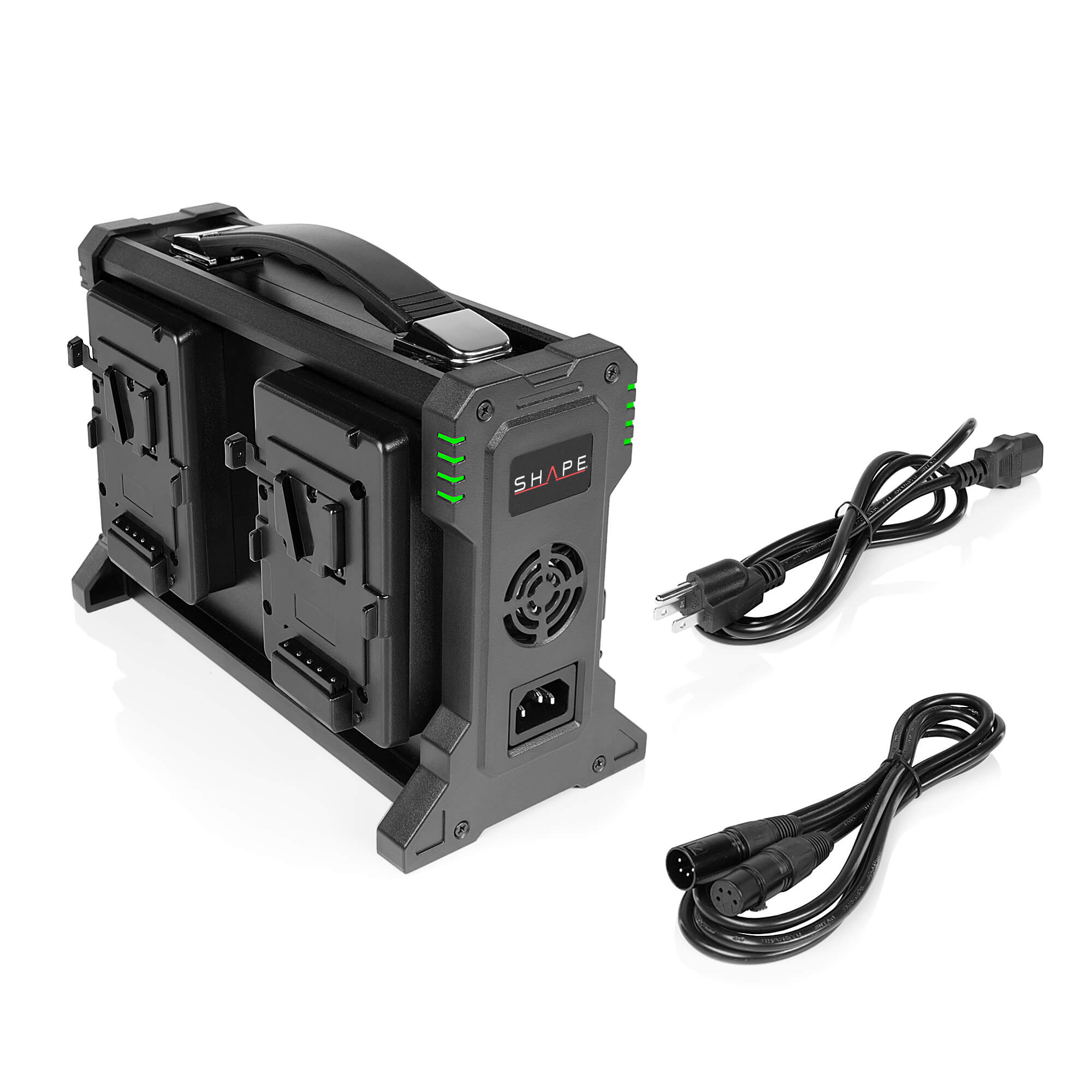

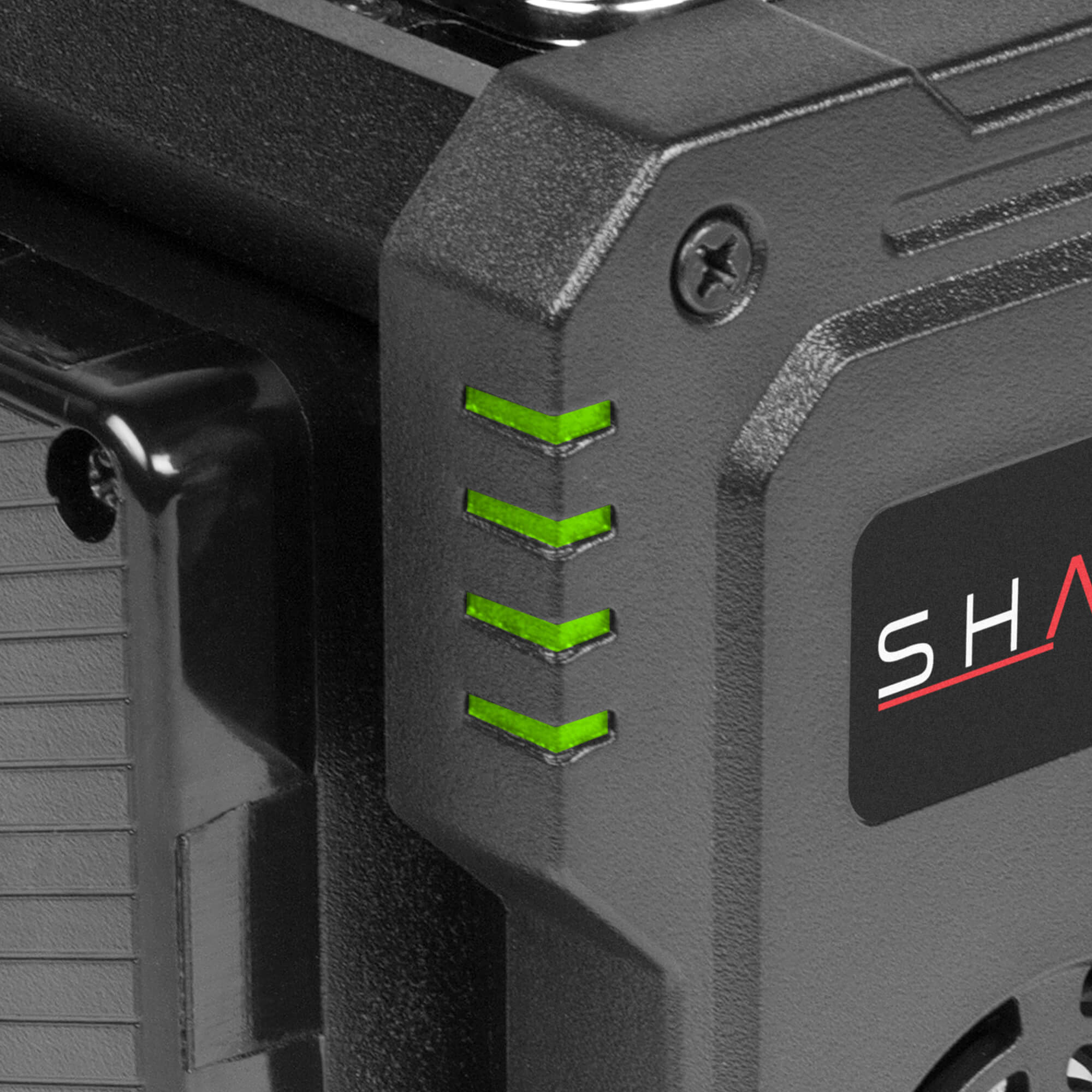

It has a compact vertical design with an integrated carry handle for portability and includes light indicators to display battery charge status and a mode switch for Charge, DC Out, or Off functions.
Power Specifications
The unit operates on worldwide AC voltages from 100-240V, 50-60Hz with a 3.8A input and includes an internal power supply.
Charge current per channel : 2.5A
DC output power : 60W
DC output voltage : 15V
DC output current : 4.0A
Input voltage : 100 : 240 V
Input frequency : 50 : 60 Hz
AC power input current : 3.8 A
Dimensions : 10.08 x 4.65 x 7.40 in
Dimensions : 25.60 x 11.80 x 18.80 cm
