Mini 50 Wh V-Mount battery USB-C Input/Output

Compact Design and Compatibility

The SHAPE Mini 50Wh V-Mount battery has a newly redesigned compact form factor suitable for mounting on various pro-video equipment including cameras, monitors, and lights. Its box-like design allows easy stacking for storage and transport, and it is compatible with V-Mount plates and chargers.

Multiple Output Interfaces

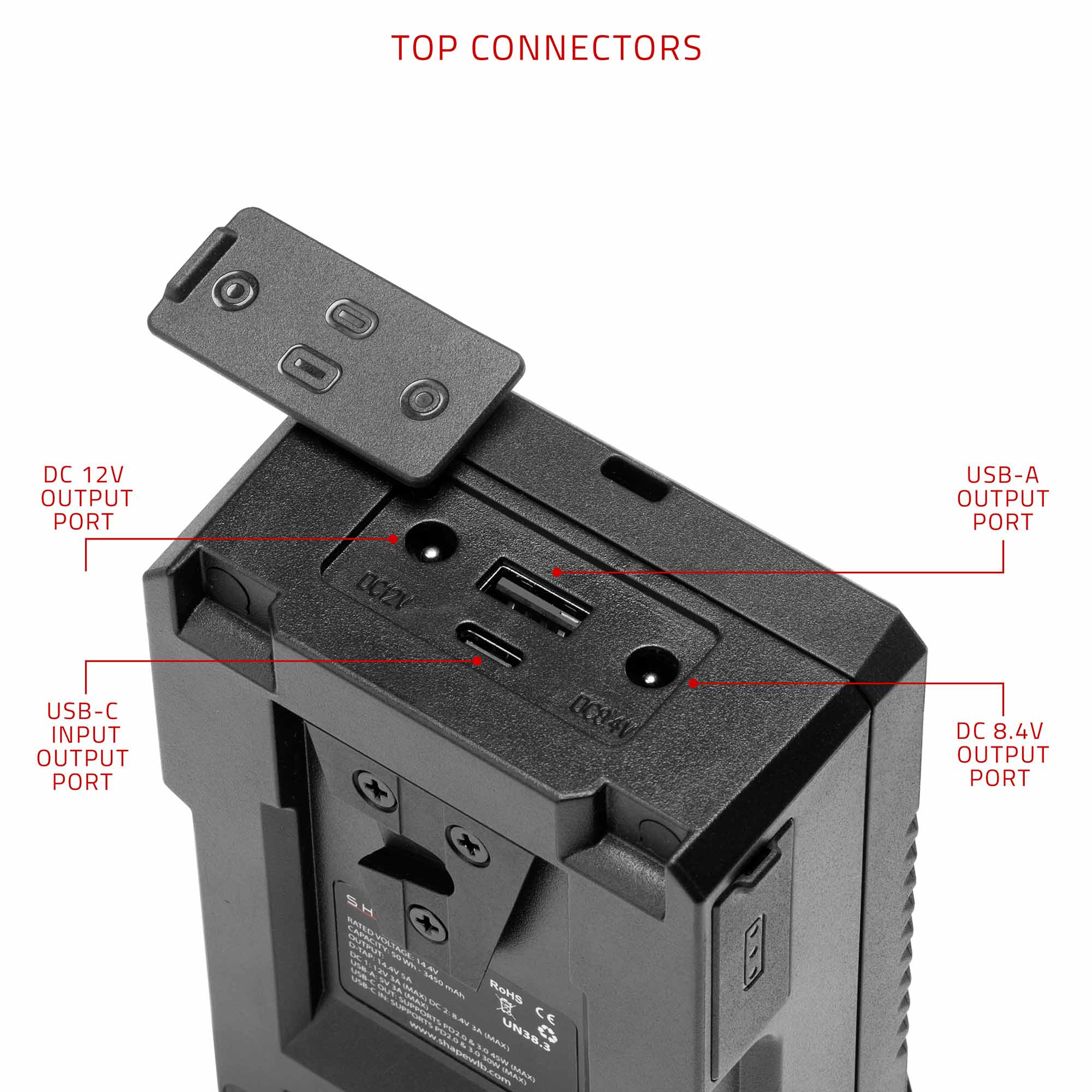

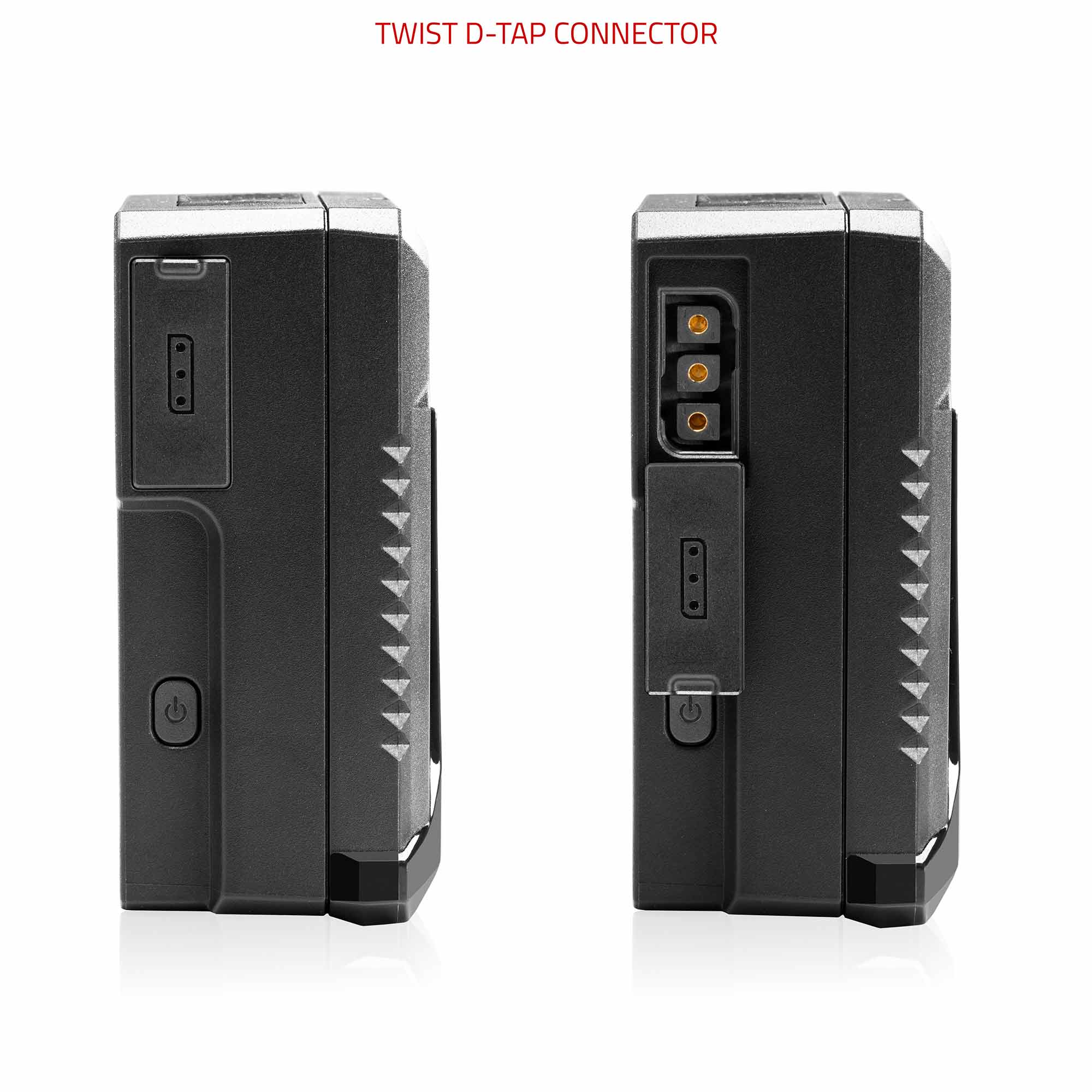

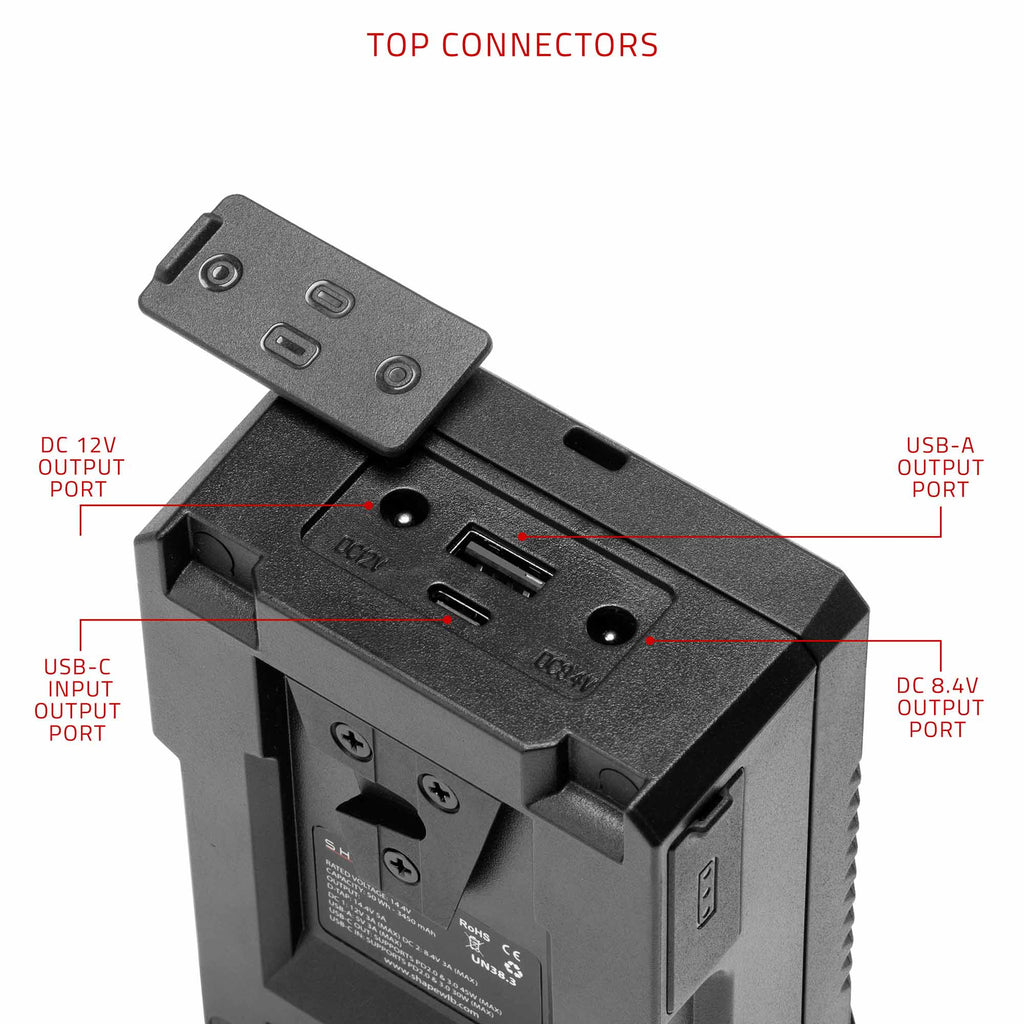

This battery offers several output options including a Twist D-tap port delivering 14.4V at 5A continuous, two DC outputs (DC1: 12A, 3A max; DC2: 8.4V, 3A max), USB-A output at 5V, 3A max, and USB-C output supporting Power Delivery 2.0 and 3.0 up to 45W. The USB-C port also serves as an input for charging at up to 30W.

Safety and Durability Features

It incorporates intelligent control circuitry with protections against short circuits, over-voltage, and over-current to ensure safe operation and charging. The battery casing is made of durable, shock-resistant materials with D-tap and BP ports constructed from PPS aircraft-grade materials.

Additional Functionalities

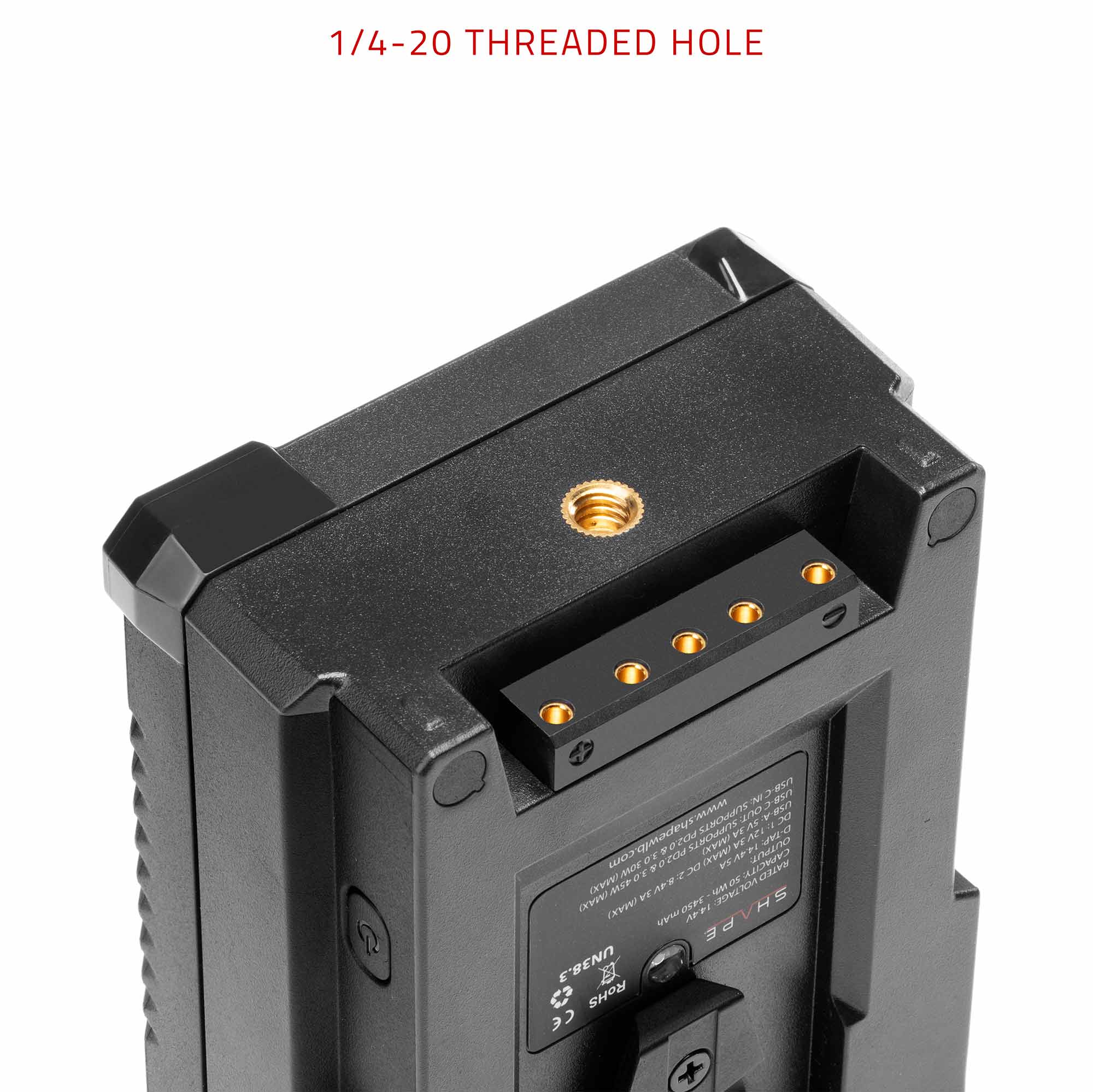

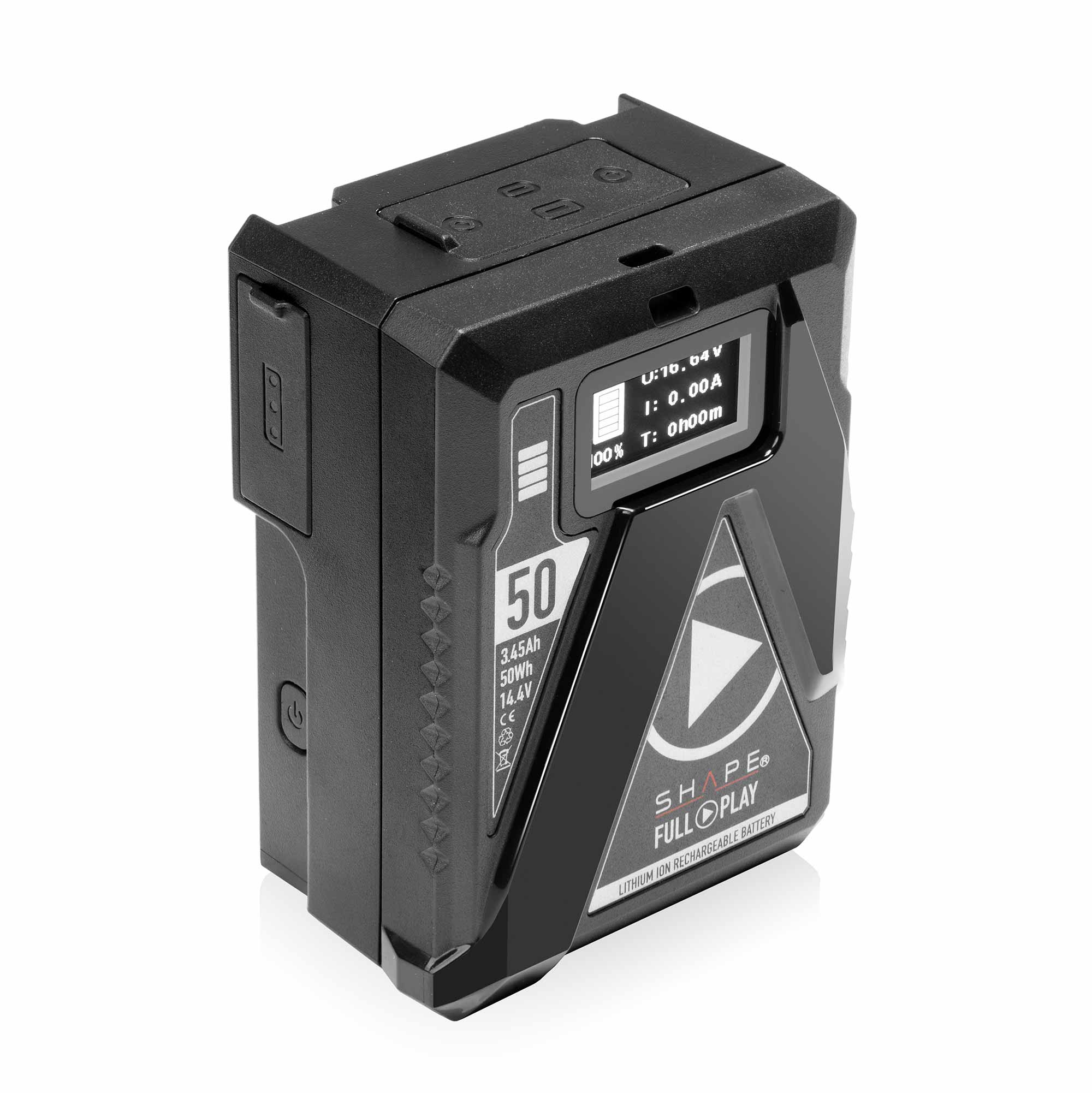

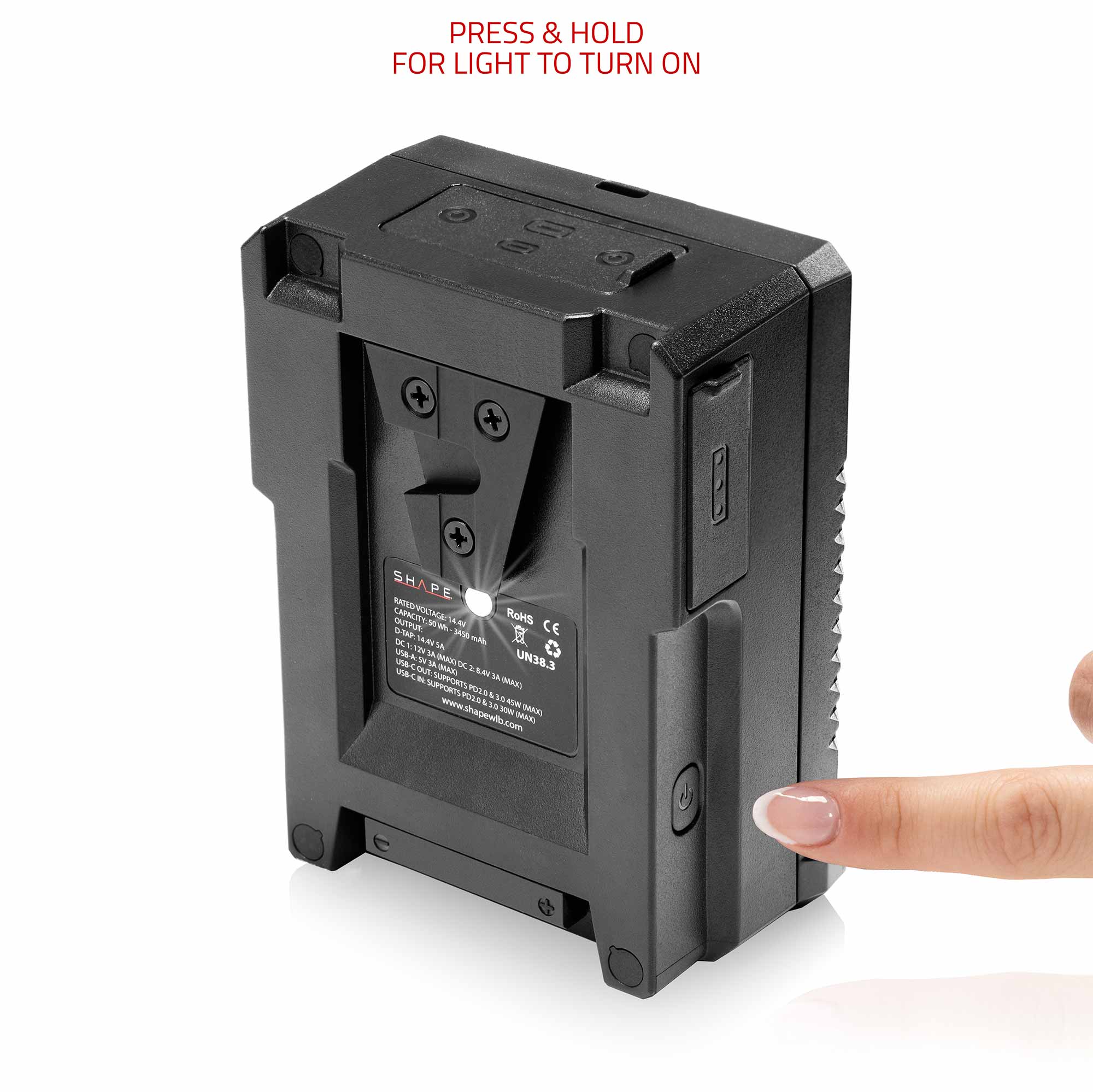

An integrated LCD display provides detailed battery status including voltage, amperage, remaining time, percentage, and charge level. A built-in LED flashlight allows operation in dark environments, and a ¼-20 threaded hole underneath the battery facilitates secure attachment.
