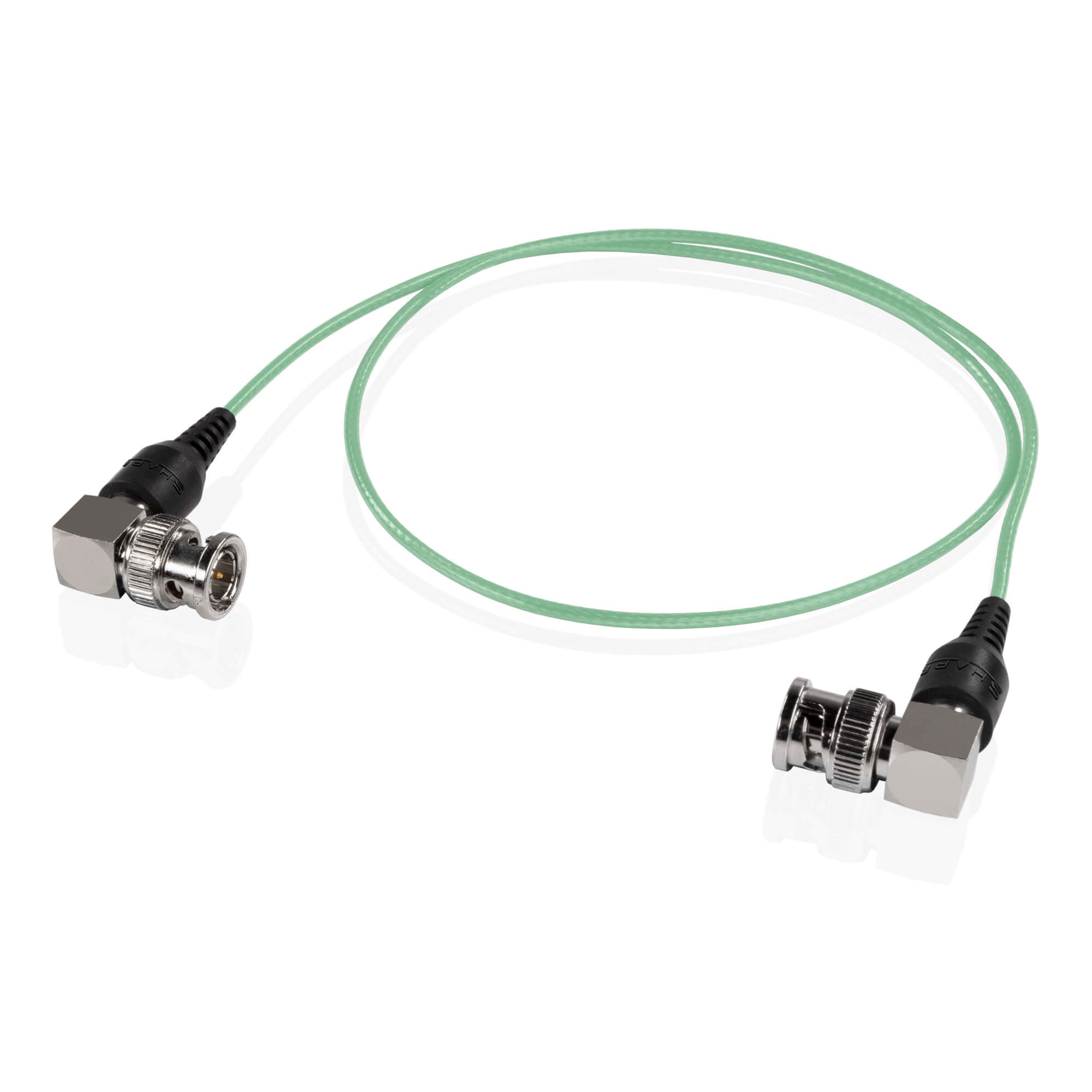

Name: Skinny 90-degree BNC cable 24 inches green
Brand: Shape
SKU: SKI24G
Price: 28.20 EUR
Availability: InStock

Skinny 90-degree BNC cable 24 inches green

€28,20

Skinny 90-degree BNC cable 24 inches green

€28,20 incl. VAT

€23,50 excl. VAT

SKI24G

• Thin 90-degree male to male BNC cable with 2.5 mm outer diameter.
• Supports transfer of both serial data and video signals.
• Impedance of 75 ohms with frequency range from DC to 1 GHz.
• Versatile cable compatible with SDI equipment including HD cameras, monitors, and wireless TX/RX sets.

In stock

Design and Compatibility

This SHAPE Skinny 90-Degree BNC Cable features a slim 2.5 mm diameter design allowing compatibility with a wide range of components on professional rigs. The cable is designed with 90-degree male BNC connectors on both ends to facilitate easy connection in tight spaces.

Performance Characteristics

The cable supports signal transmission for serial data and video with an impedance of 75 ohms, frequency range from DC up to 1 GHz, and Voltage Standing Wave Ratio (VSWR) maximum of 1.2, suitable for accurate signal transfer.

Application Range

It is compatible with various Serial Digital Interface (SDI) devices including HD cameras, gimbals, monitors, electronic viewfinders, antennas, and SDI wireless transmitter/receiver sets, and is rated for 3G-SDI signals.

Length : 24 inches
Outer Diameter : 2.5 mm
Connector Type : 90 : degree Male BNC to 90 : degree Male BNC
Impedance : 75 ohms
Frequency Range : DC to 1 GHz
VSWR : 1.2 MAX
