Design and Compatibility

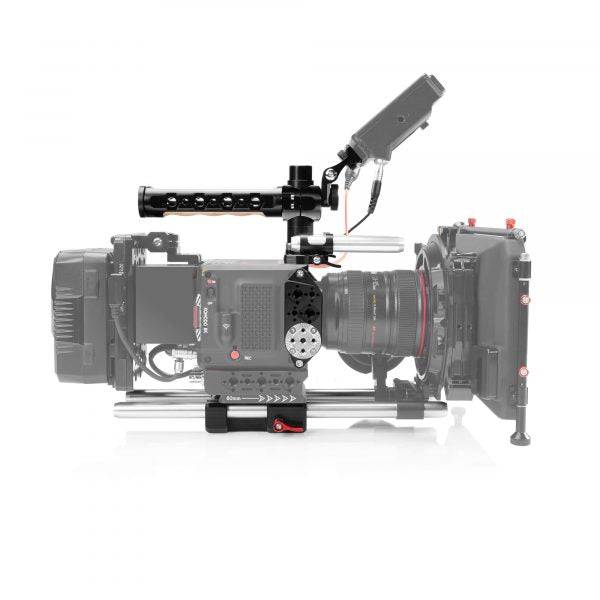

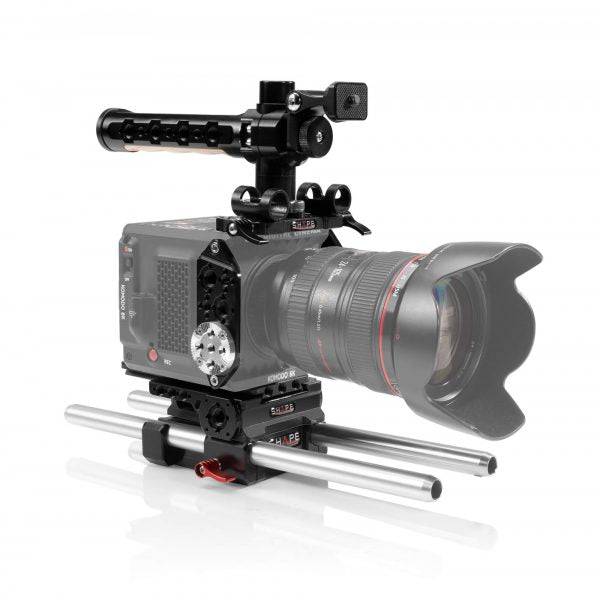

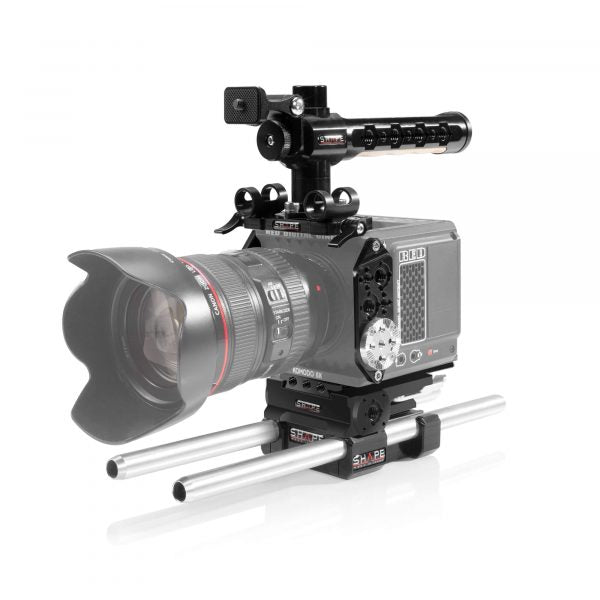

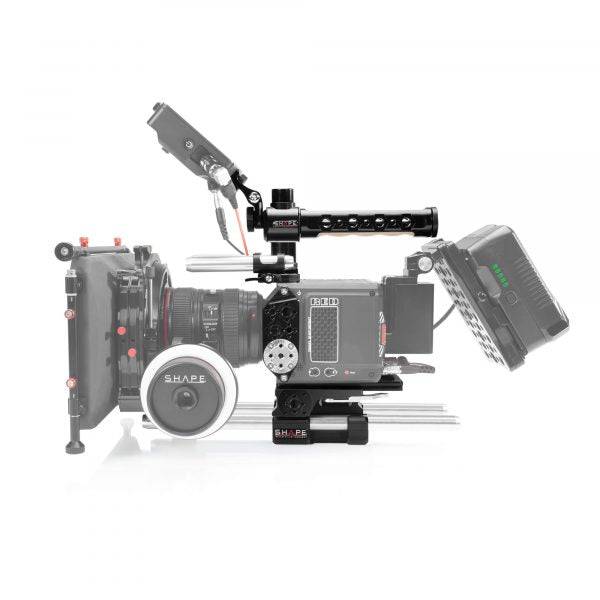

This three-piece cage kit and L-shaped top handle are designed specifically for the RED® KOMODO™ & KOMODO™ 6K Production Pack cameras, providing secure protection and accessory mounting threads.
Top Handle Features

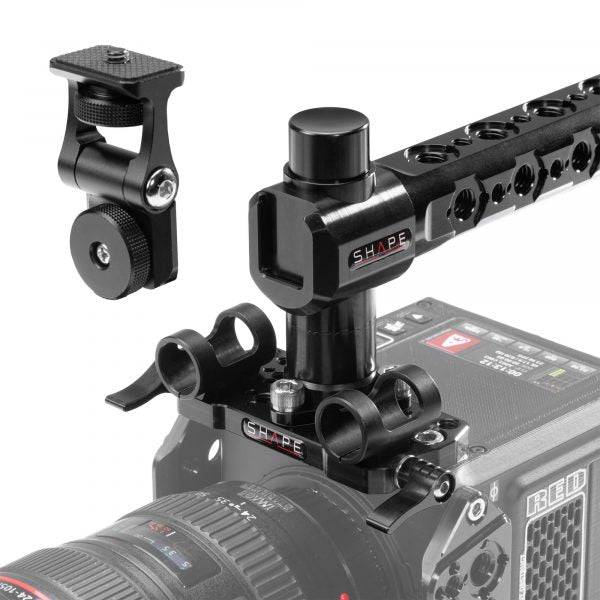

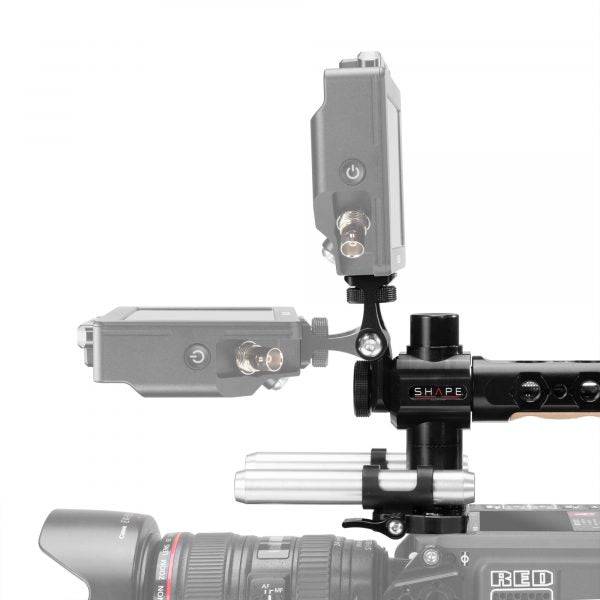

The anodized aluminum and Canadian maple top handle attaches securely with screws, offers 360-degree rotation and balance adjustments via Push-Button Technology, and includes multiple 3/8-16 ARRI-style anti-twist accessory threads and a cold shoe with a tilting mount bracket for accessories up to 4.4 lb.

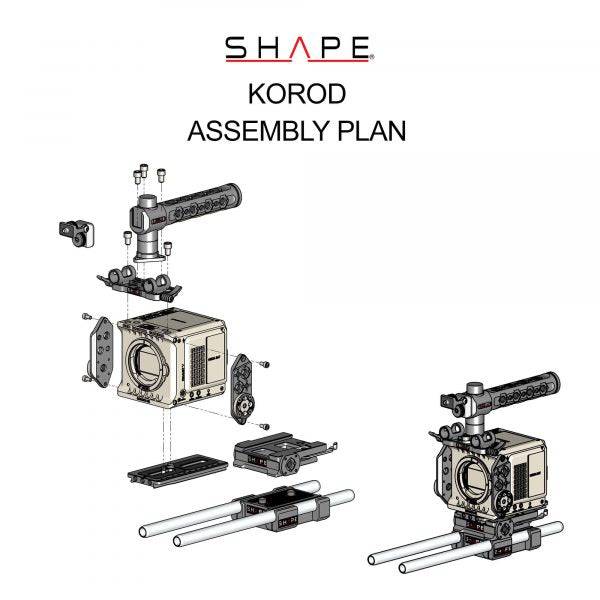

Cage and Baseplate Configuration

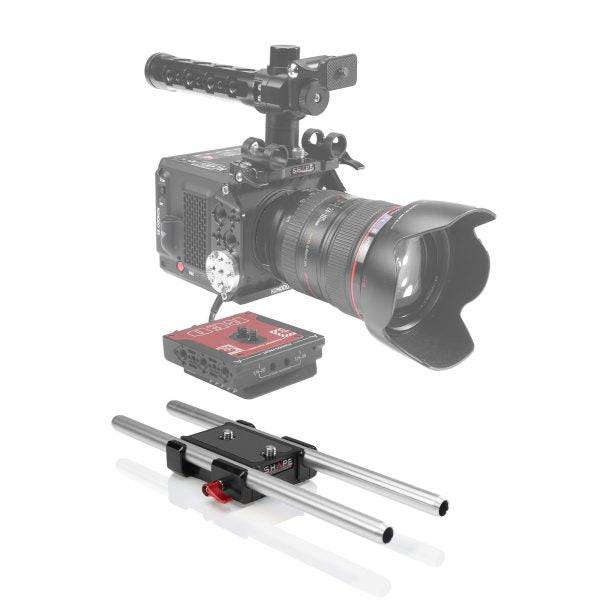

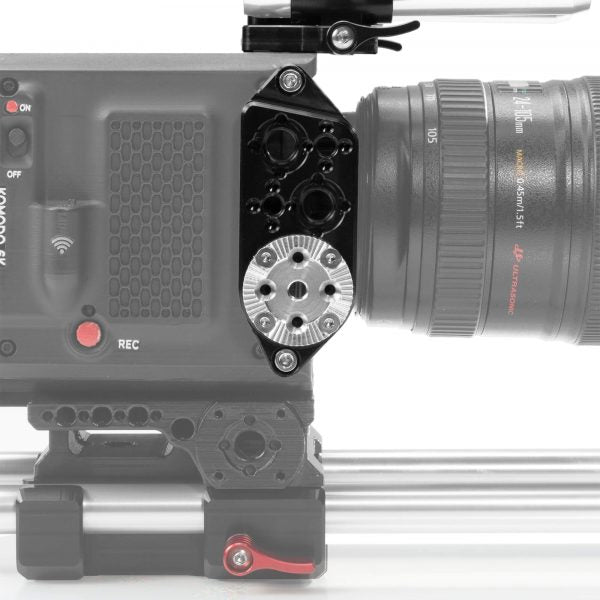

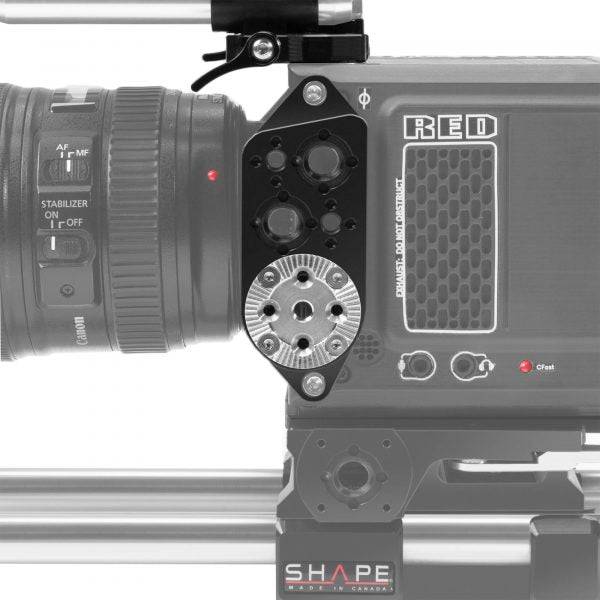

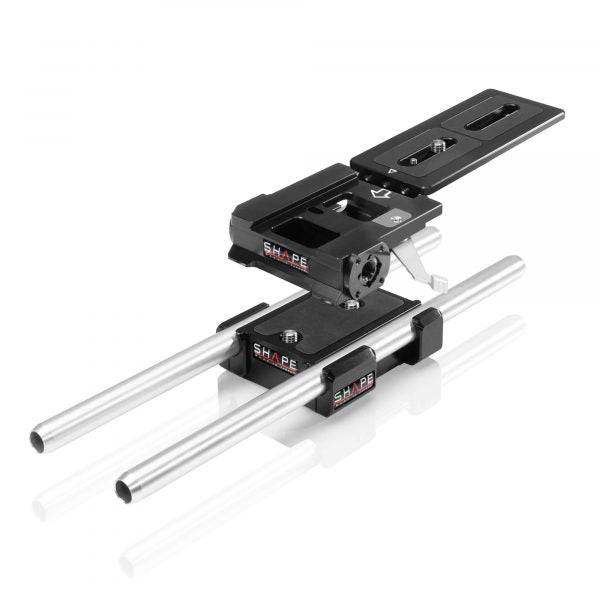

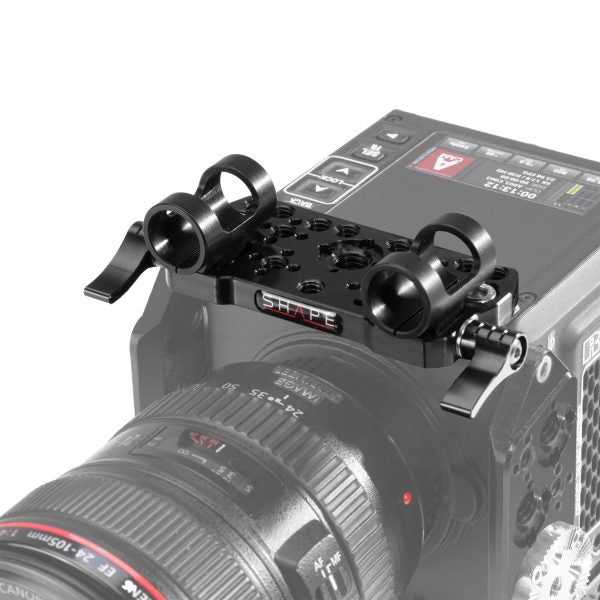

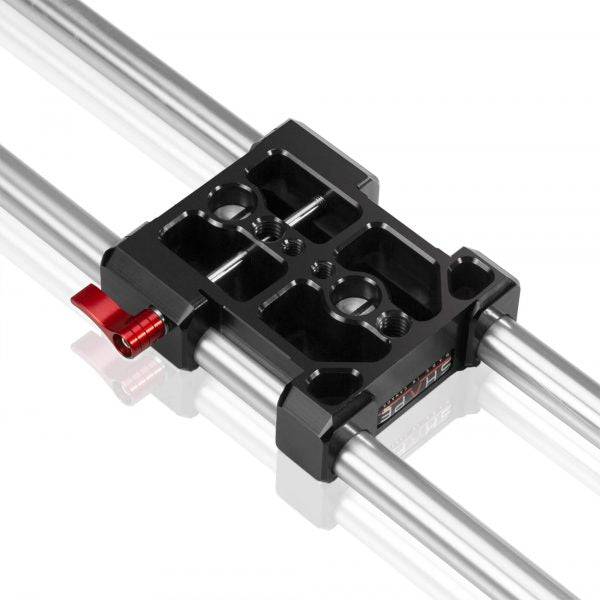

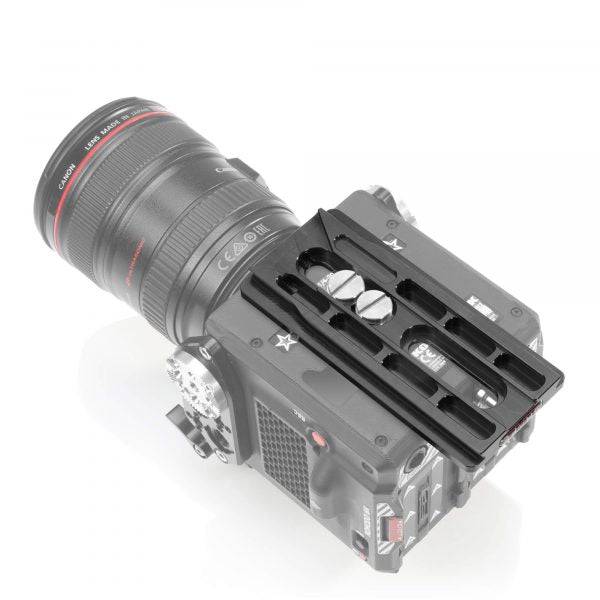

The cage kit features side plates with M6 ARRI rosette mounts, a top plate with threaded holes, a 15mm LW rod bloc clamp, and a 15mm lightweight baseplate system matching the RED KOMODO optical center, including a dovetail spacer and ARRI rosette mounts.
Included Accessories
The kit includes 15mm aluminum rods for accessory mounting and various screws and hex wrenches for assembly, enhancing camera rig compatibility and functionality.
Material : CNC aluminum and Canadian maple
Compatibility : RED KOMODO & KOMODO 6K Production Pack
Handle Rotation : 360 degrees with Push : Button Technology
Accessory Mounting Threads : 3/8 : 16, 1/4 : 20, M6 ARRI rosette
Rod Size : 15 mm lightweight rods
Dimensions (L×W×H) : 12.00 × 4.40 × 9.70 in
